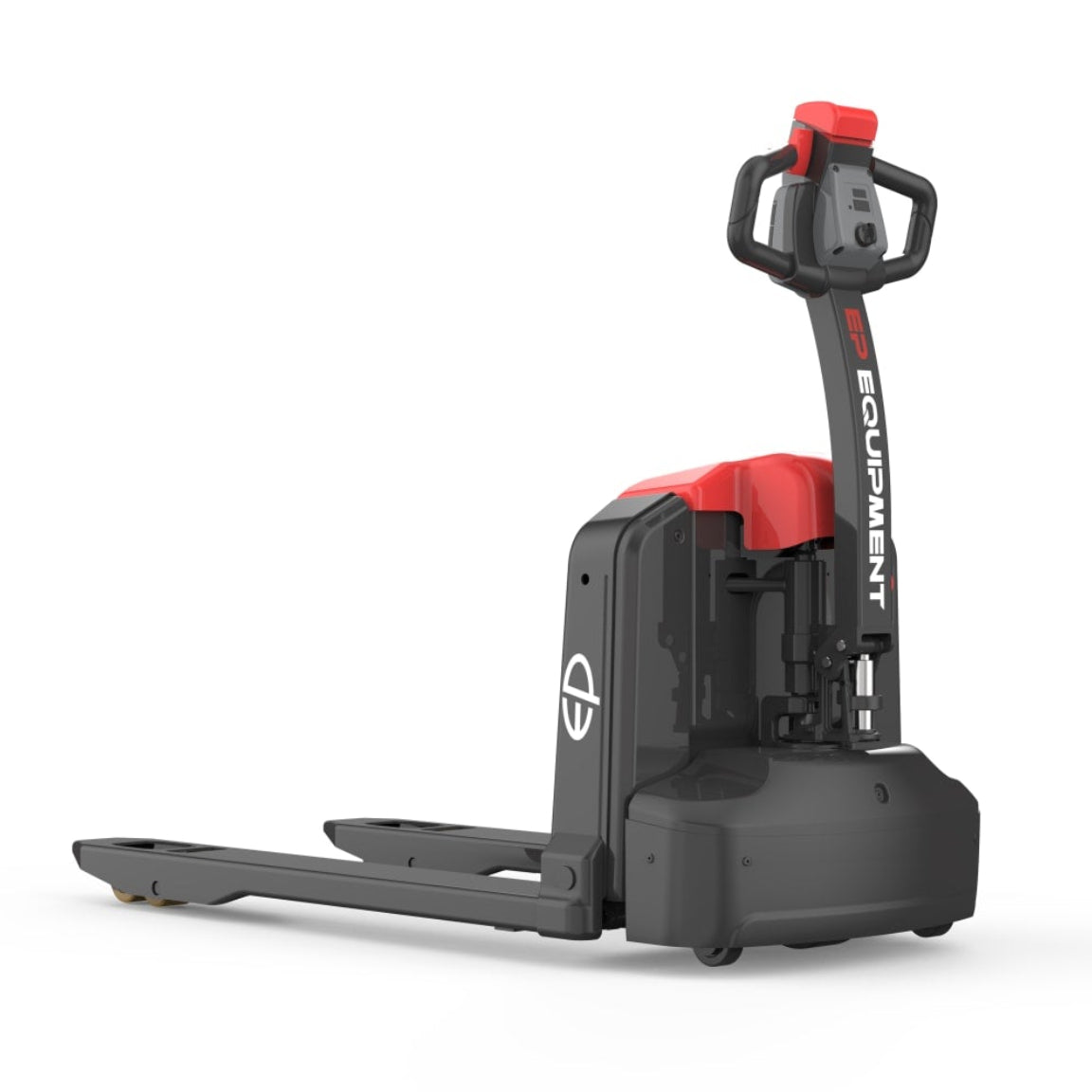

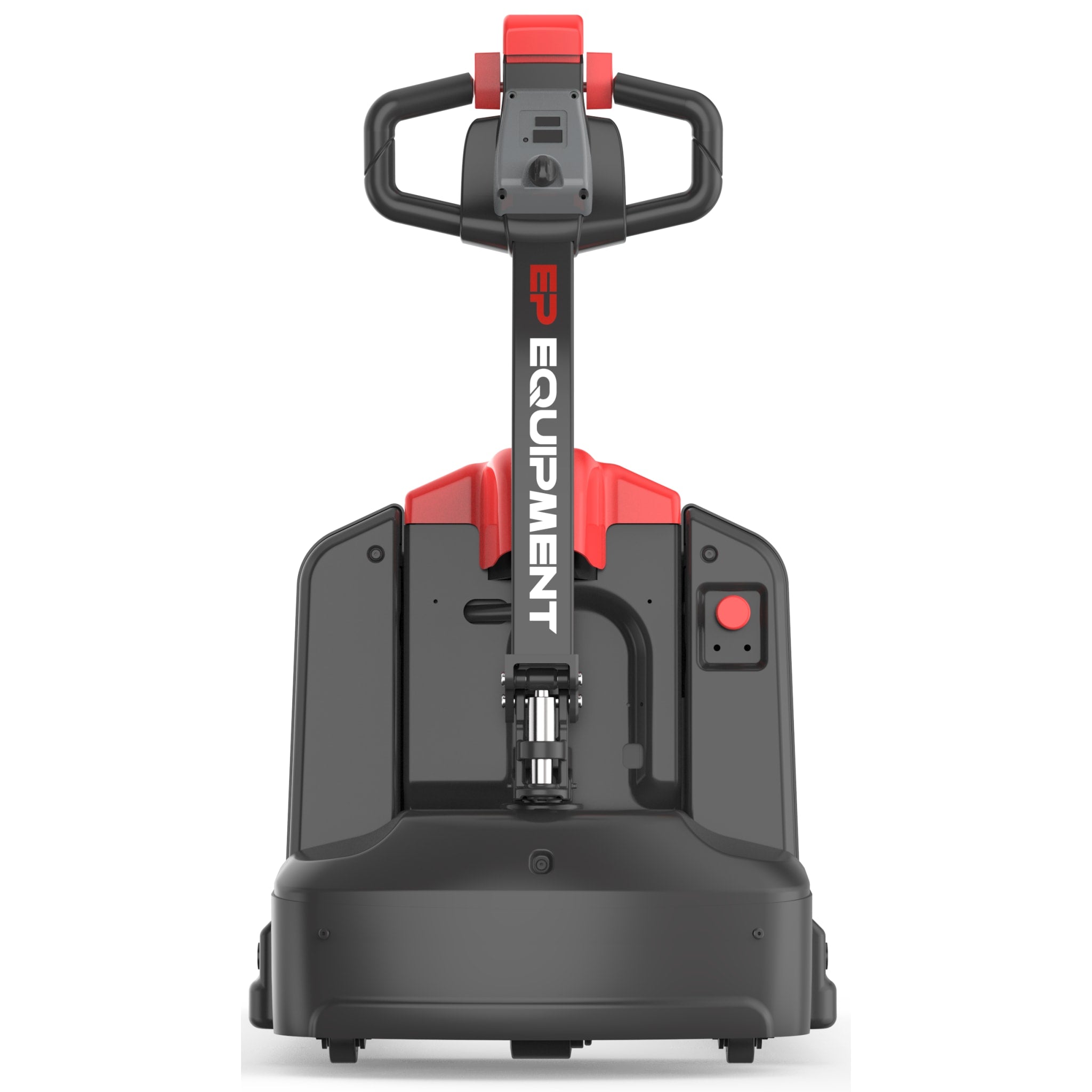

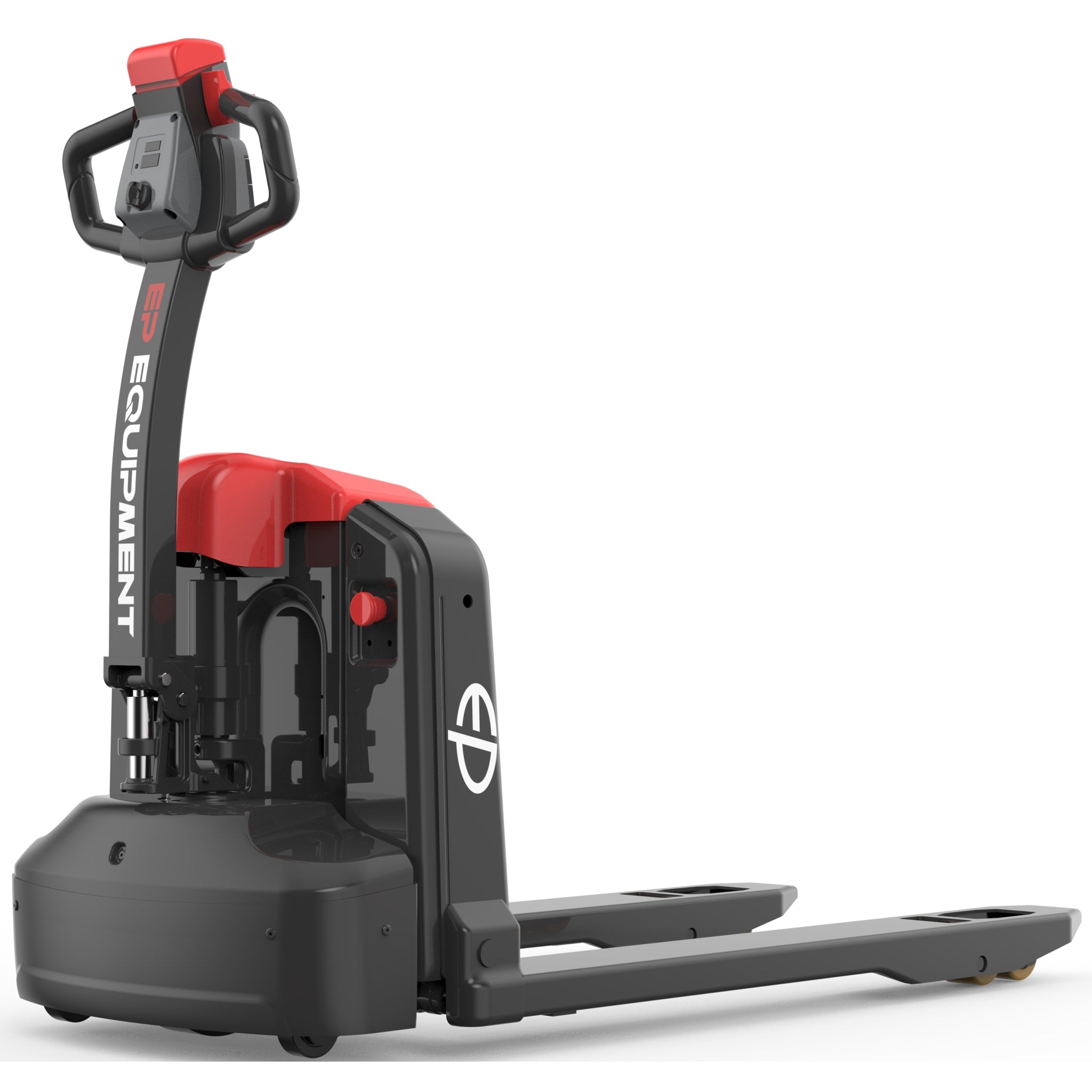

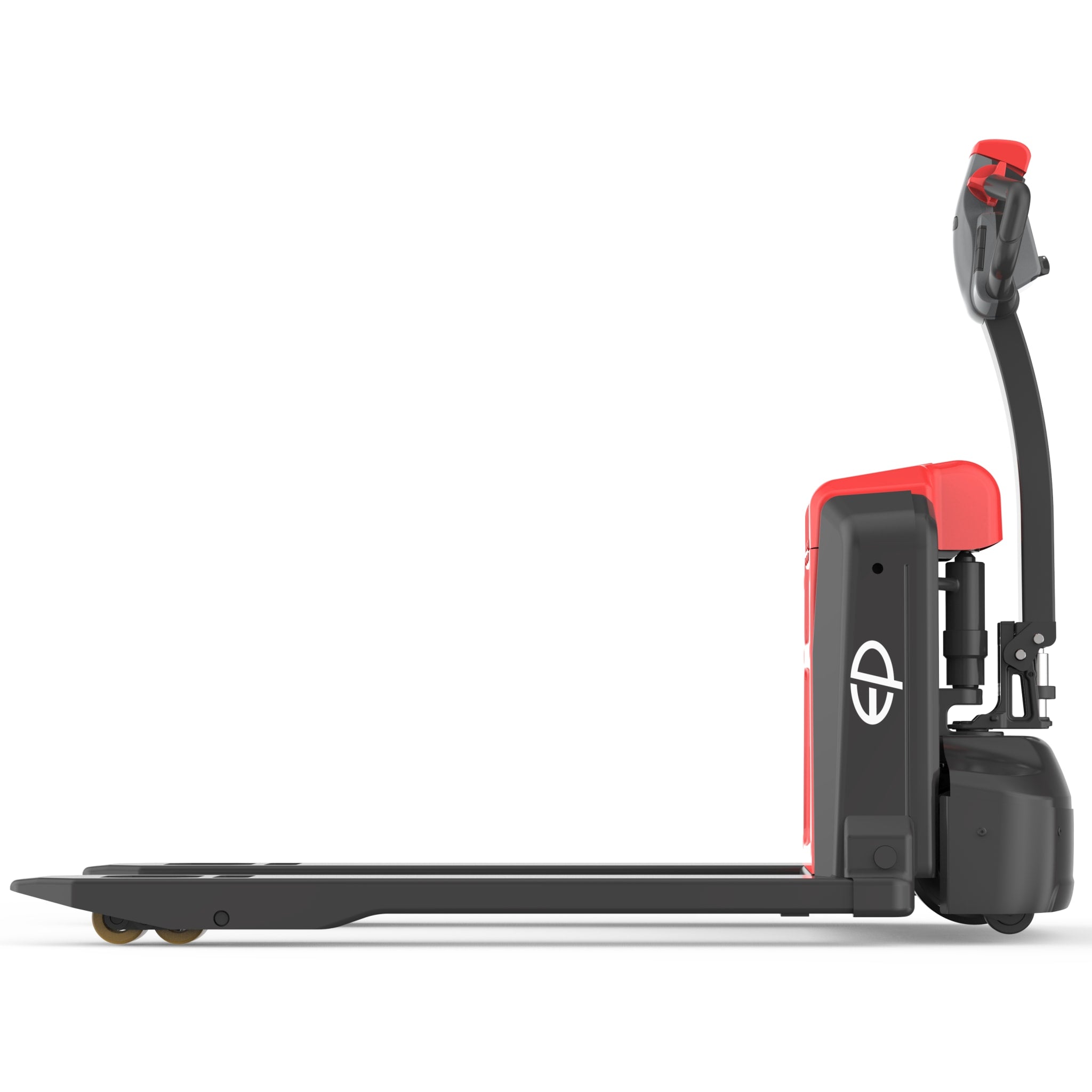

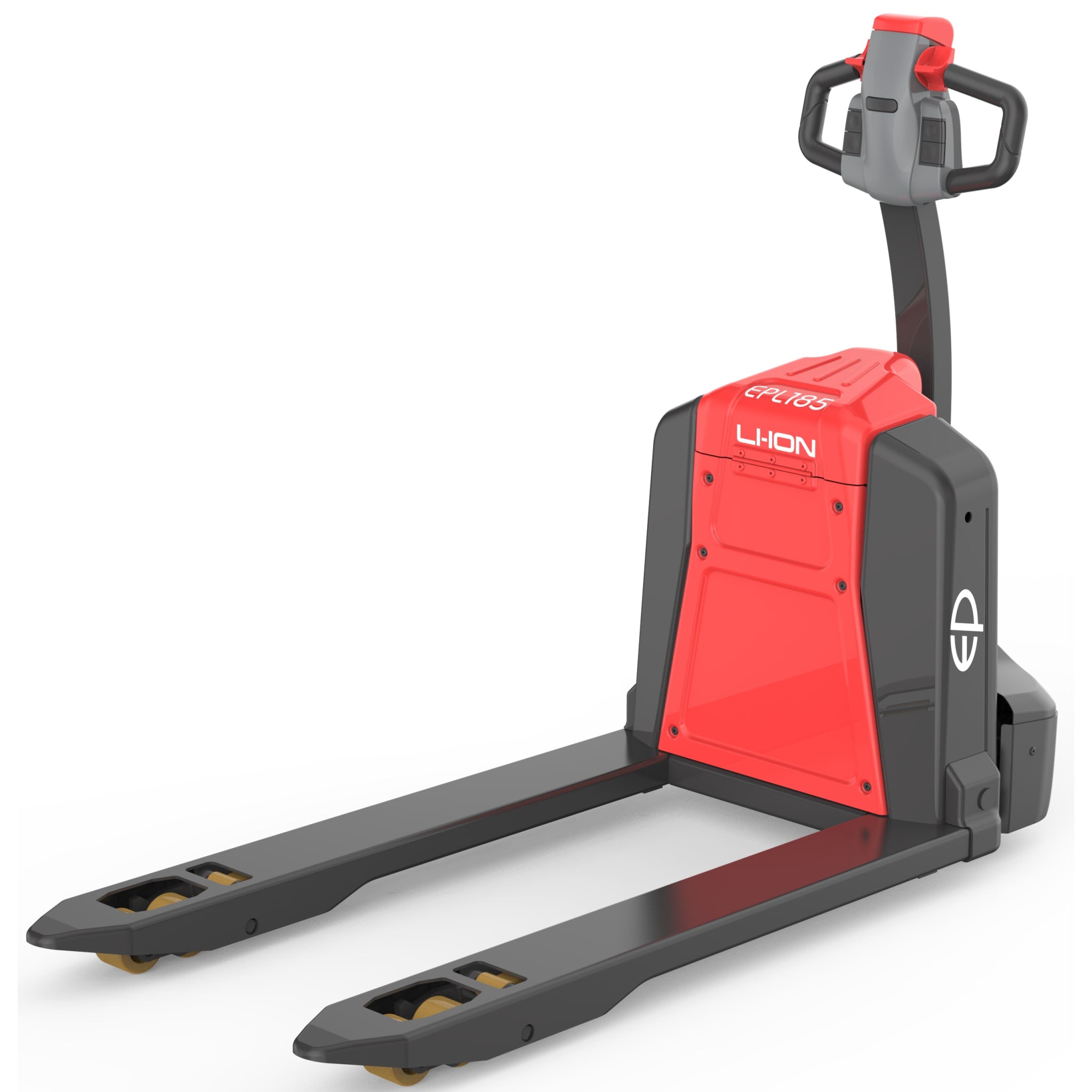

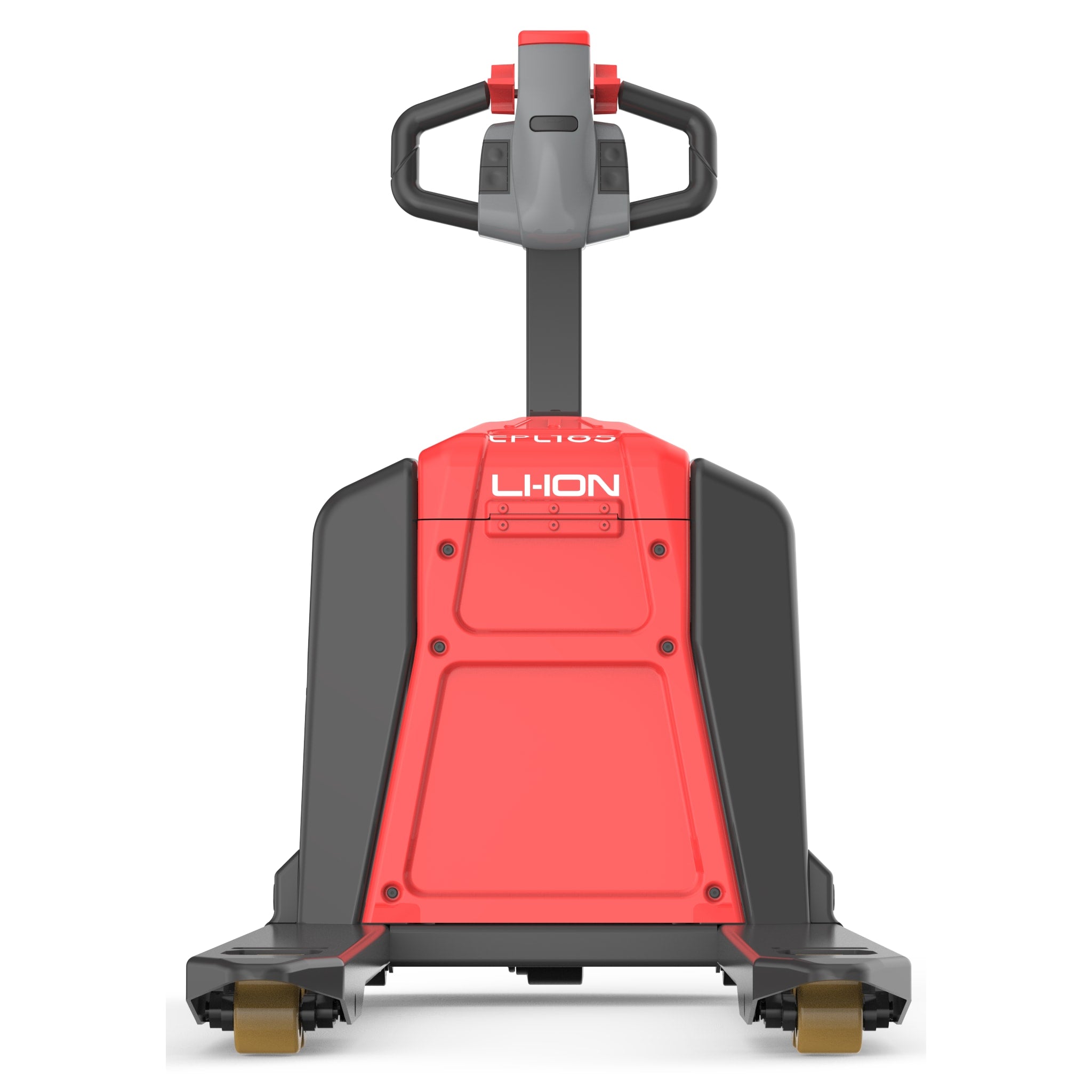

Electric Pallet Truck EPL185 from EP for 1800 kg
2.725 €
excl. VAT
+498123 900 88 90The EPL185 electric pallet truck from EP with a lithium-ion battery is excellent for daily goods transport and the loading and unloading of trucks. This electric pallet jack is agile, lightweight, and easy to operate. Its compactness makes it the ideal device for tight spaces in retail, the food and beverage industry, and the logistics sector.
- Compact turning radius: Only 1330 mm, super agile and easy to maneuver in tight spaces and for use inside trucks
- Lithium-ion: Powerful 48 V / 30 Ah battery, completely maintenance-free; with a net weight of only 14 kg, the battery can be changed effortlessly
- Charging: Connect the integrated charger to any 230 V socket – the battery is fully recharged in just 2.5 hours; opportunity charging is possible
- Exchangeable battery: With a separately available second battery, operating time can be extended to enable continuous operation
- High gradeability: Can master gradients of up to 16% - ideal for ramps
- Fast travel speed: Reaches up to 5.5 km/h
- Effective lift: Lifts goods up to 1800 kg to a height of 195 mm
- Fork length: 1150 mm - perfect for Euro pallets (EPAL 1) and lattice boxes
- Improved stability: Support rollers increase stability and prevent potential tipping when cornering
Features

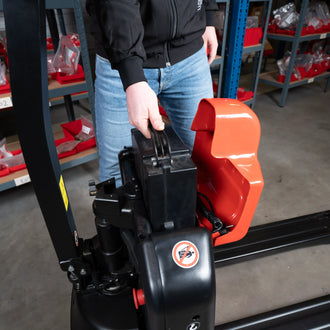

Fast battery exchange
The lithium battery is removed in just a few simple steps and can be replaced with a separate additional battery - ideal for multi-shift operations.
High gradeability
Handles gradients of up to 16%. This makes this EP electric pallet truck ideal for loading and unloading on ramps.

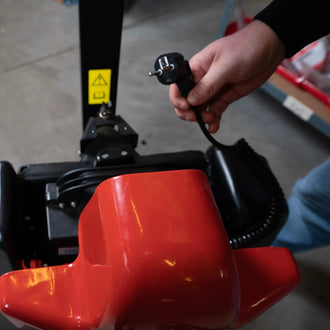

Integrated charger
Simple charging in 2.5 hours. Lithium-ion batteries are well-suited for opportunity charging – this increases operational readiness.Technical data
General
Capacity
1800
kg
Weight
170
kg
Forklift licence needed
no
Sound level EN-12053
74
dB
Material
steel
Chassis surface
powder coated
Seal
CE
Warranty
2 year warranty
Brand
EP Equipment
Product ID
10011414-0
Wheels
Wheels material
Polyurethane (PU)
Steering wheel diameter
210
mm
Steering wheel width
70
mm
Load roller wheel diameter
80
mm
Fork roller width
60
mm
Lift
Lift height
195
mm
Lift motor power
0.8
kW
Lift speed, unladen
0.025
m/s
Lift type
electric
Drive
Drive motor power
0.9
kW
Travel speed, unladen
5.5
km/h
Creep speed button
yes
Gradeability, unladen
16
%
Max. gradeability, laden
6
%
Drive
electric
Brake
electromagnetic
Battery
Battery type
Lithium-ion
Battery capacity
30
Ah
Voltage
48
V
Battery voltage
48
V
Battery weight
14
kg
Battery charger
Integrated charger
Delivery
Delivery
forwarding agency
Delivered as
on pallet
Dimensions
-
Fork length1150 mml
-
Lift height195 mmh3
-
Load centre600 mmc
-
Lift height, effective115 mmh12
-
Height1260 mmh14/h4
-
Tiller height1260 mmh14
-
Length1550 mml1
-
Ground clearance30 mmm2
-
Ground clearance, outer80 mmh13
-
Fork height50 mms
-
Wheelbase1200 mmy
-
Width610 mmb1
-
Fork width, outer distance540 mmb5
-
Fork width, single fork150 mme
-
Aisle width for 1200x8002146 mmAst
-
Turning radius1330 mmWa
-
Distance between forks240 mm
