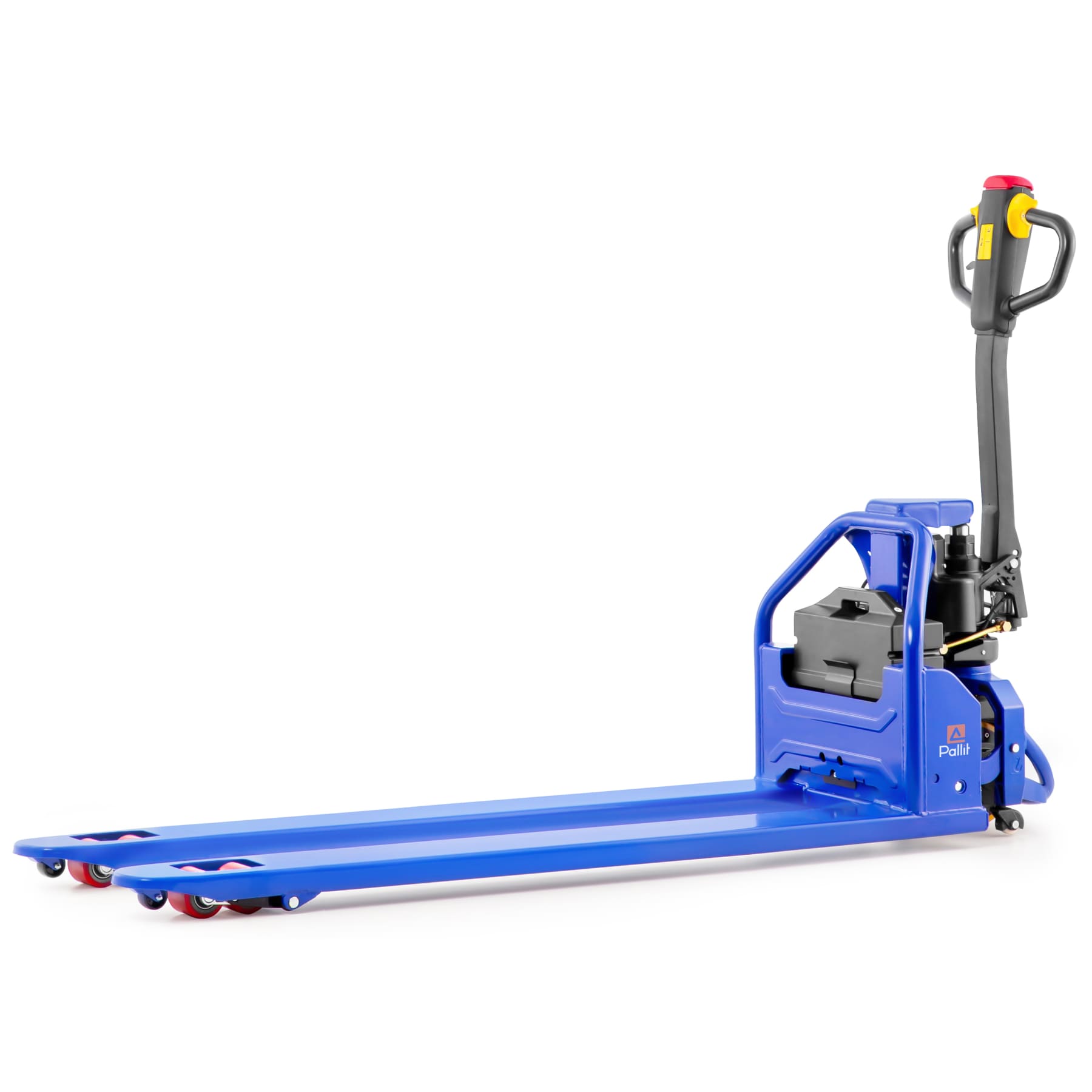

Electric Pallet Truck ONE-MAX

Name: Electric Pallet Truck ONE-MAX
Brand: Pallit
SKU: 10010577-0
Price: 2393.0 EUR
Availability: InStock

Move 2 pallets simultaneously - up to 6 hours at a time.

2.393 € excl. VAT

📢 In use by 181+ companies across Europe

The ONE-MAX long fork electric pallet truck with lithium-ion battery is particularly robust and suitable for daily, intensive operation. Fast charging times and the long operating time of the battery increase efficiency when transporting goods. The 1,600 mm long forks make it possible to work with special pallets and to pick up two Euro-pallets crosswise at the same time.

Easy handling: battery change in just one easy step and without additional tools

Use: move pallets up to 1,000 kg every day

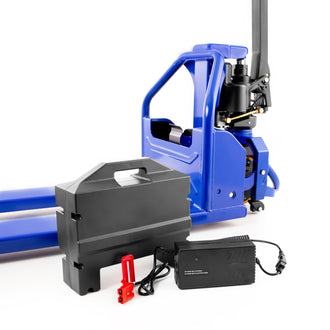

Exchangeable battery (sold separately): for multi-shift operation

Fast charging time of only 3 hrs with long operating time of 6 hrs

Use ONE-MAX in wholesale and retail trade, in production as well as for freight forwarders

Included charger – can be plugged into any 230V socket

The Lithium-ion battery with 48V/20Ah capacity is completely maintenance-free

Ease of use: thanks to the digital display as well as the keypad for keyless locking and creep speed – easy manoeuvring with the forks up

Features

Robust for everyday use

Designed for daily, intensive use, reliable in demanding environments.

High load capacity

Daily moving of pallets up to 1000 kg, ideal for wholesale and production.

elektrischer lithium-hubwagen one-max mit 1600 mm gabeln 14

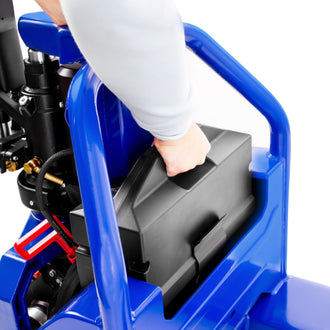

Quick battery change

Easy, tool-free battery change with just one hand movement.

elektrischer lithium-hubwagen one-max mit 1600 mm gabeln 9

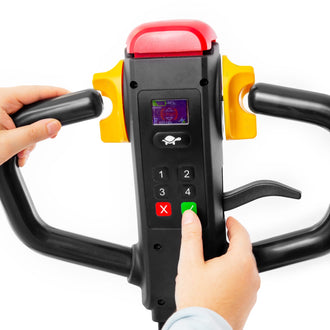

Intuitive operation

Digital display and keypad for intuitive control and safe maneuvering.

Efficient loading times

Only 3 hours charging time for 6 hours of operation, optimized for intensive use.

Technical data

General

Capacity

1000 kg

Weight

172 kg

Forklift licence needed

no

Sound level EN-12053

70 dB

Material

steel

Chassis surface

powder coated

Seal

CE

Warranty

5 years warranty Plus

Brand

Pallit

Product ID

10010577-0

Wheels

Wheels material

Polyurethane (PU)

Steering wheel diameter

210 mm

Steering wheel width

70 mm

Fork roller type

tandem

Load roller wheel diameter

80 mm

Fork roller width

70 mm

Entry rollers

Yes

Lift

Lift height

200 mm

Lift motor power

0.8 kW

Lift speed, unladen

0.035 m/s

Lift type

electric

Drive

Drive motor power

0.65 kW

Drive motor type

Brushless DC motor

Travel speed, unladen

5 km/h

Creep speed button

Yes

Gradeability, unladen

20 %

Max. gradeability, laden

5 %

Drive

electric

Brake

electromagnetic brake

Battery

Battery type

lithium-ion

Operating time

6 h

Battery charging time

3 h

Battery capacity

20 Ah

Voltage

48 V

Battery voltage

48 V

Battery quantity

1

Battery weight

10 kg

Battery charger

external charger

Delivery

Forwarding agency

Delivered as

on pallet

Delivery requirements

Access routes accessible for lorry (40 t)

Links

Product brochure

Product manual

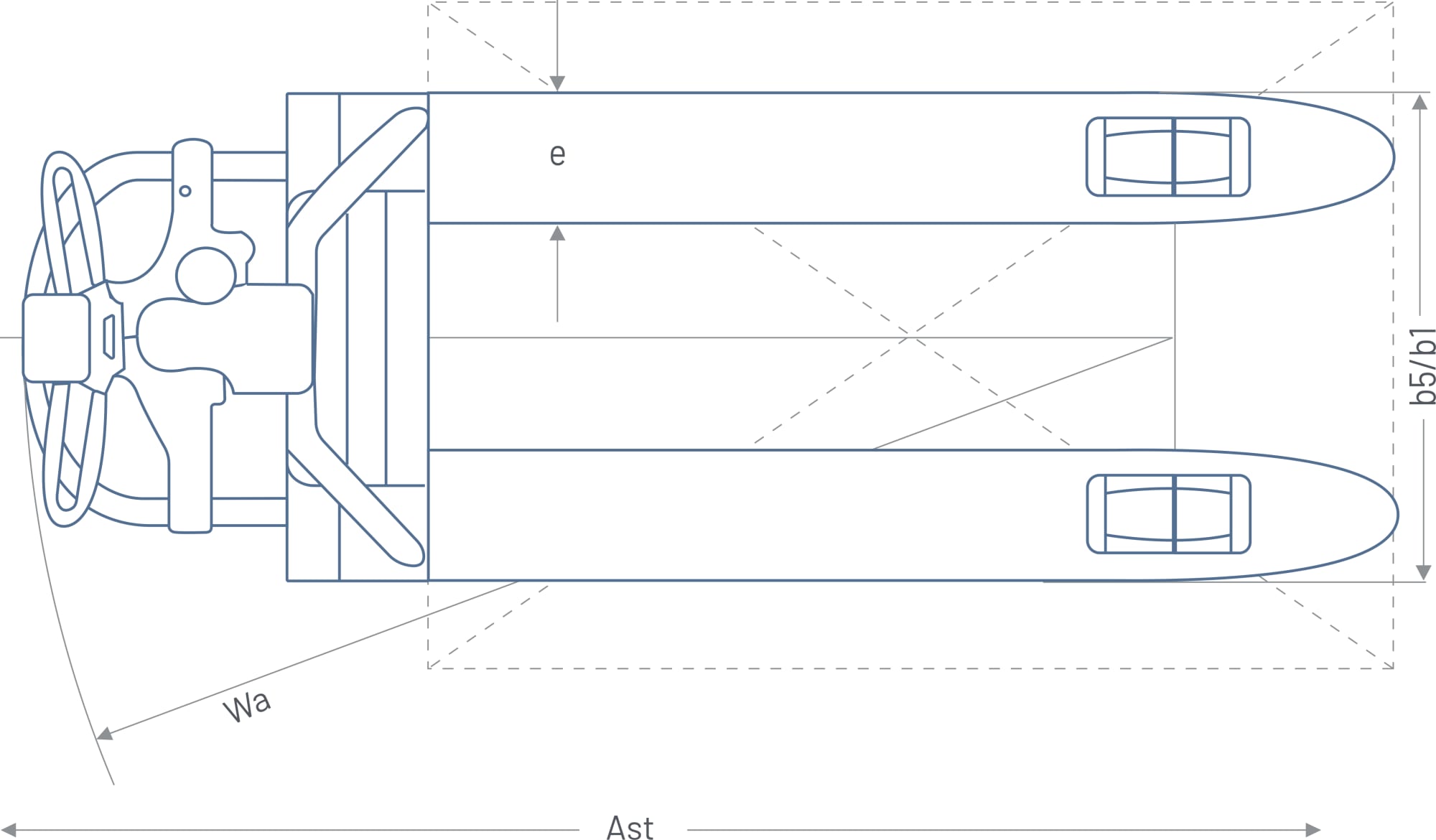

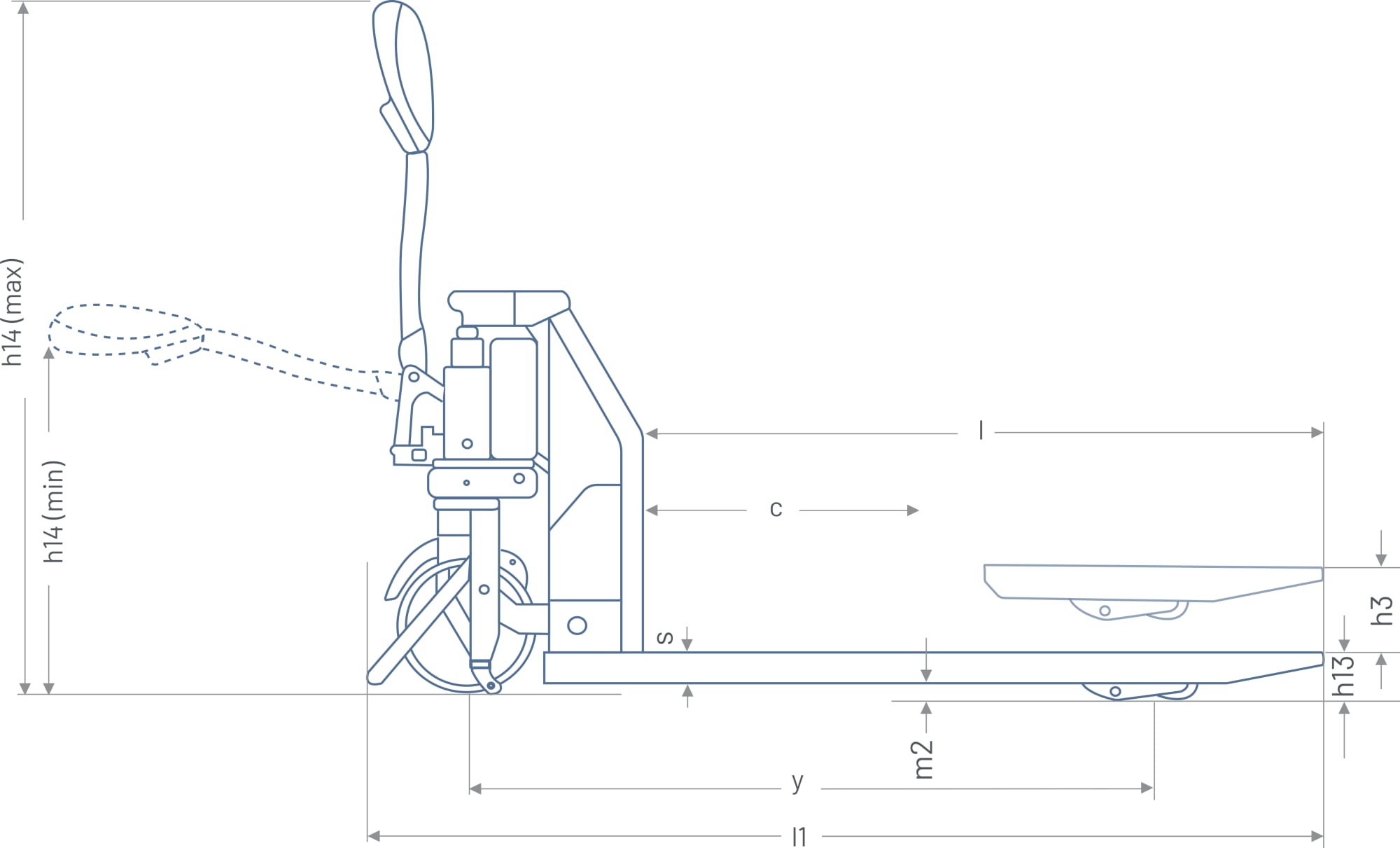

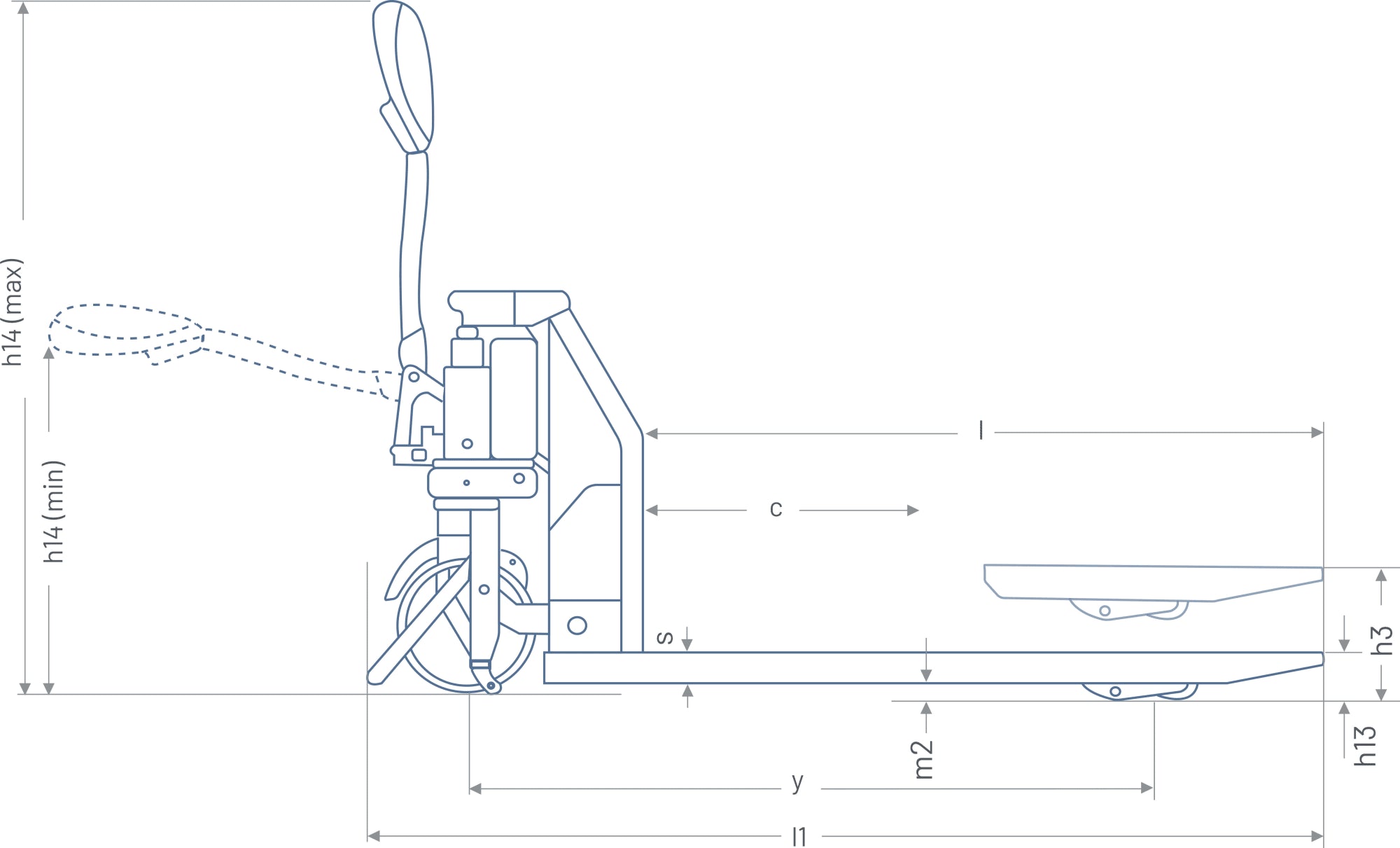

Dimensions

Fork length

1600 mm

l
Lift height

200 mm

h3
Load centre

600 mm

c
Tiller height

1200 mm

h14
Length

2073 mm

l1
Ground clearance

35 mm

m2
Ground clearance, outer

80 mm

h13
Fork height

45 mm

s
Wheelbase

1269 mm

y

Width

550 mm

b1
Fork width, outer distance

550 mm

b5
Fork width, single fork

160 mm

e
Aisle width for 1200x800

2095 mm

Ast
Turning radius

1874 mm

Wa
Distance between forks

230 mm
