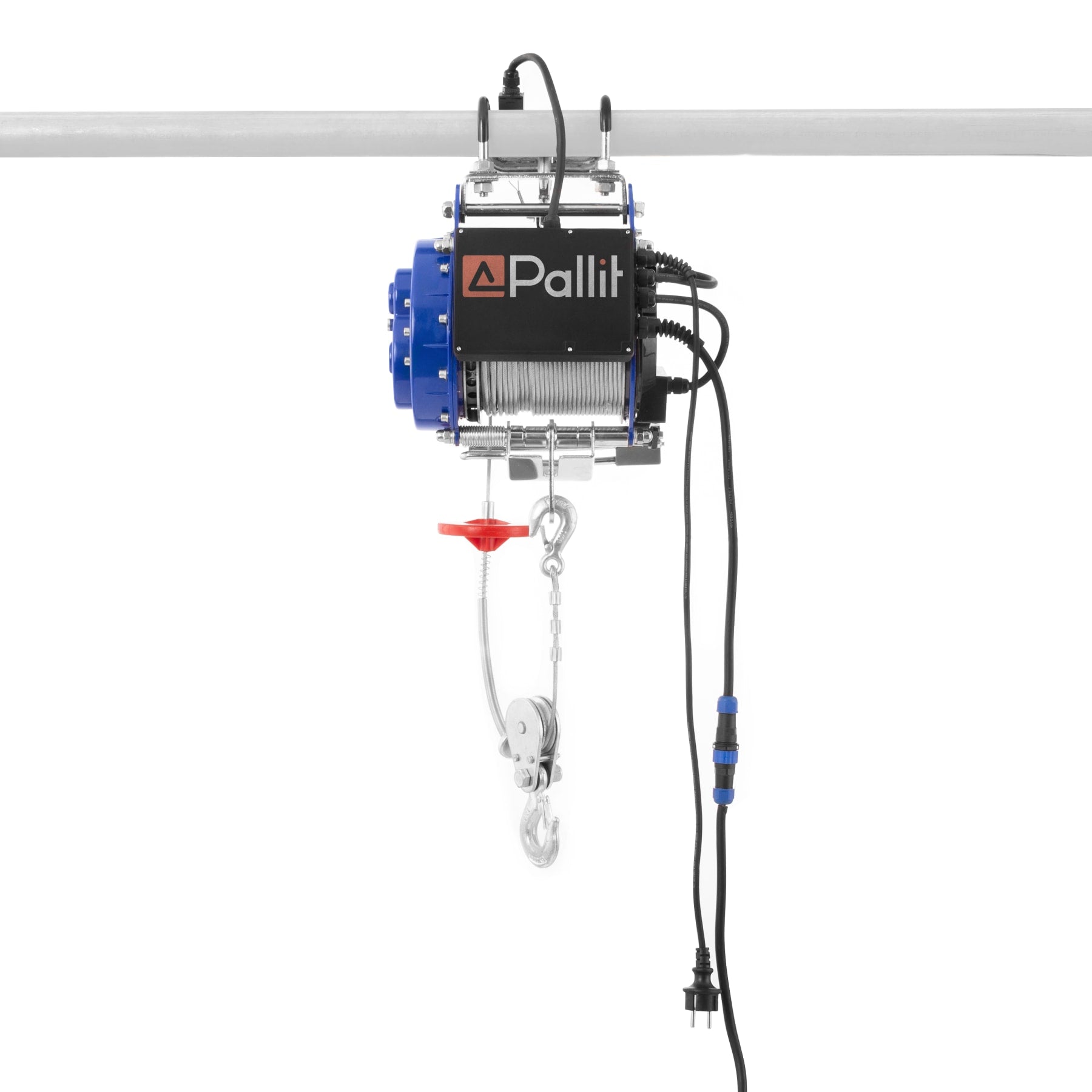

Electric Scaffold Hoist BUILD 30m

Name: Electric Scaffold Hoist BUILD 30m
Brand: Pallit
SKU: 10010491-232
Price: 484.0 EUR
Availability: InStock

Leistungsstarker und sicherer Elektroseilzug für schwere Baustelleneinsätze.

484,00 € excl. VAT

Capacity

Free delivery: Wednesday, 19 March

📢 In use by 213+ companies across Europe

SKU 10010491-232

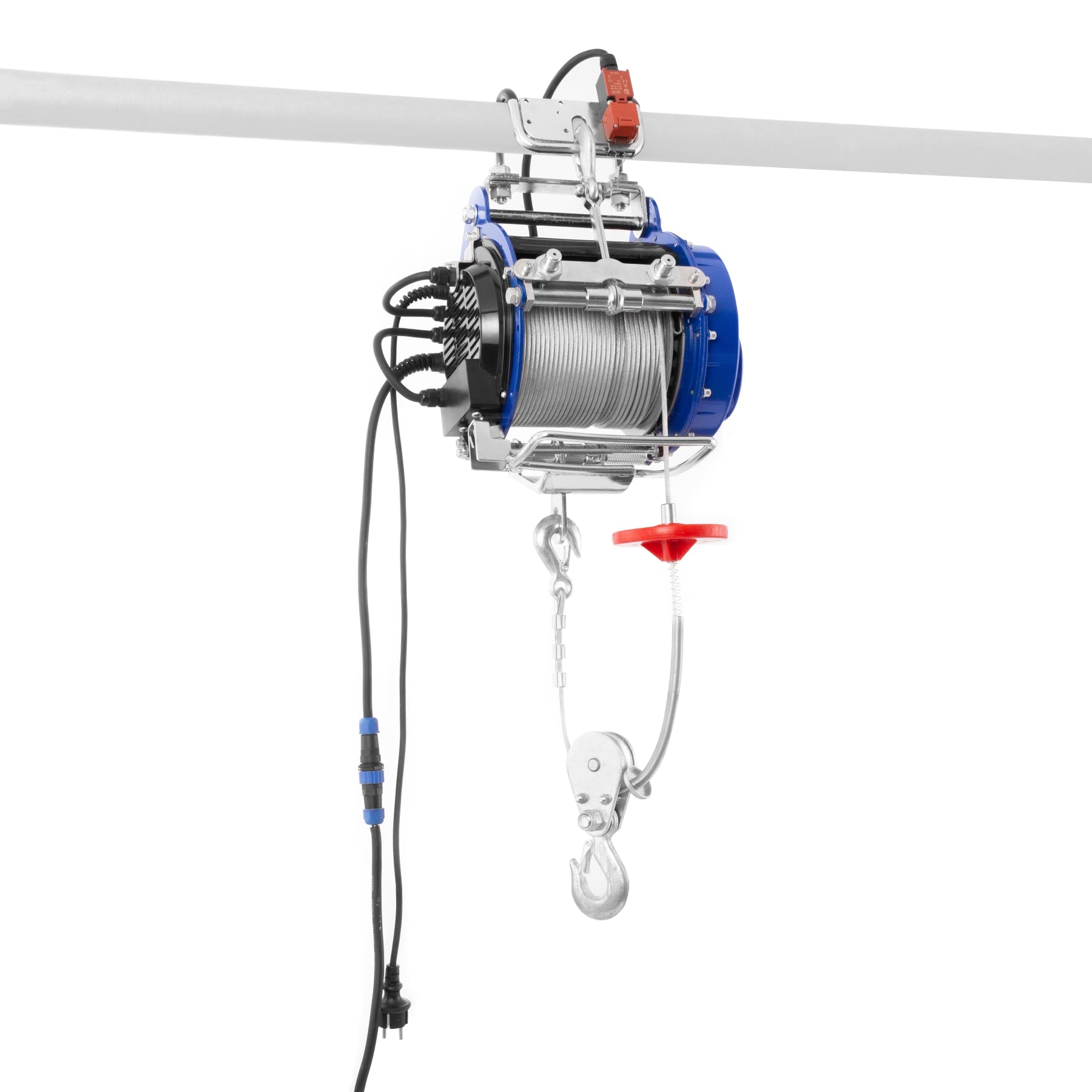

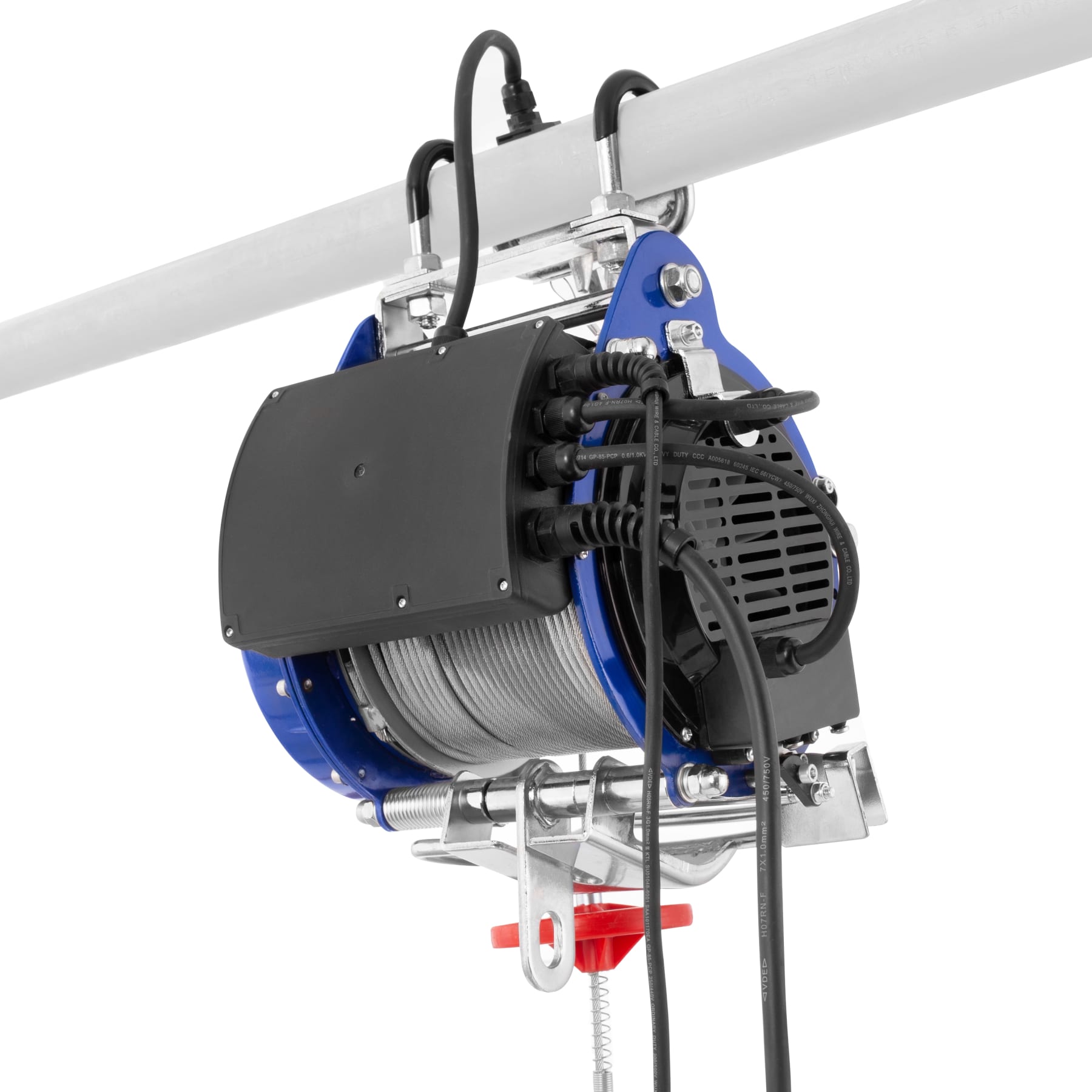

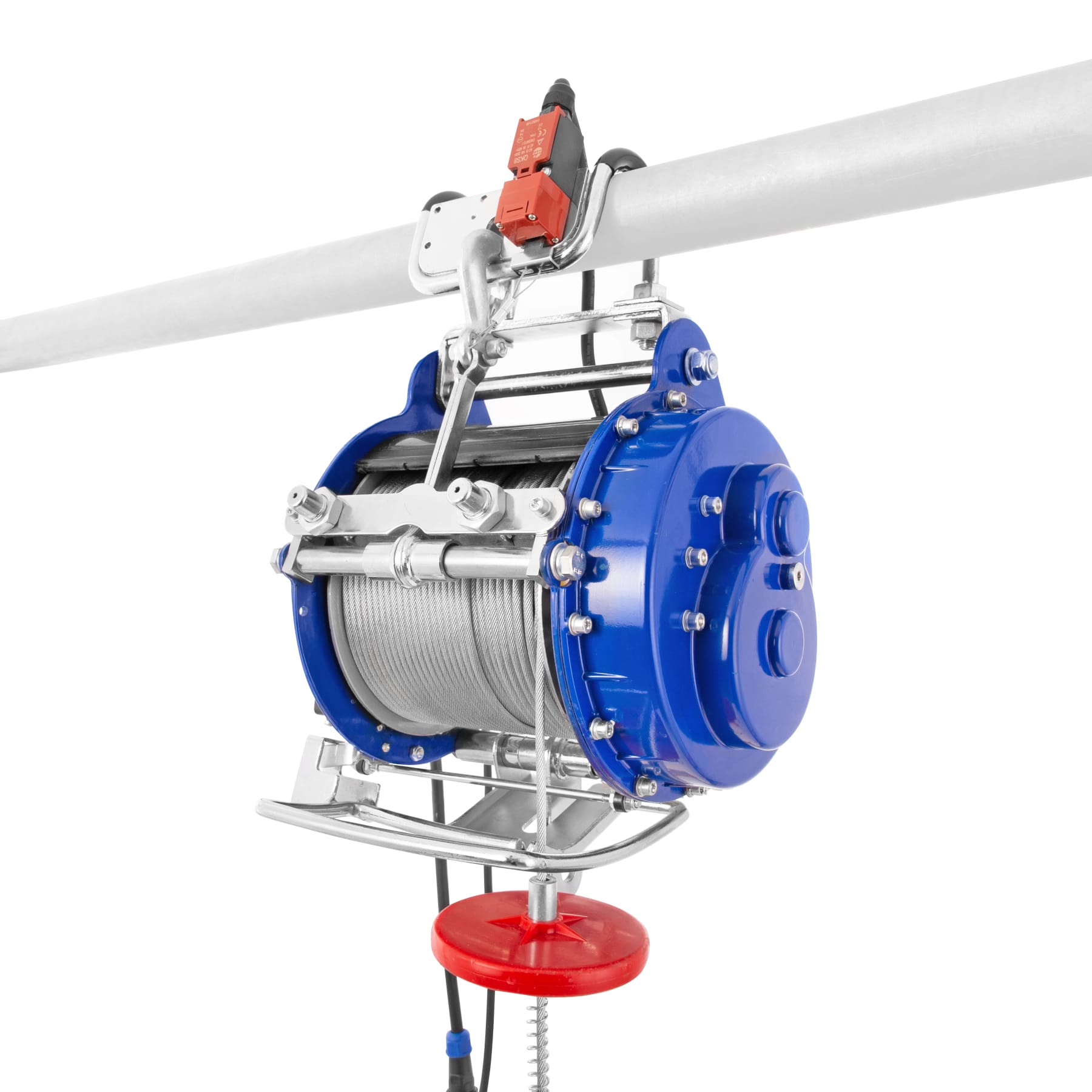

The high-quality 230V electric construction winch is a robust and powerful tool for daily lifting of heavy construction materials. With its user-friendly hanging device and locking protection, the construction winch ensures safe and efficient work, ideal for construction sites and mobile applications.

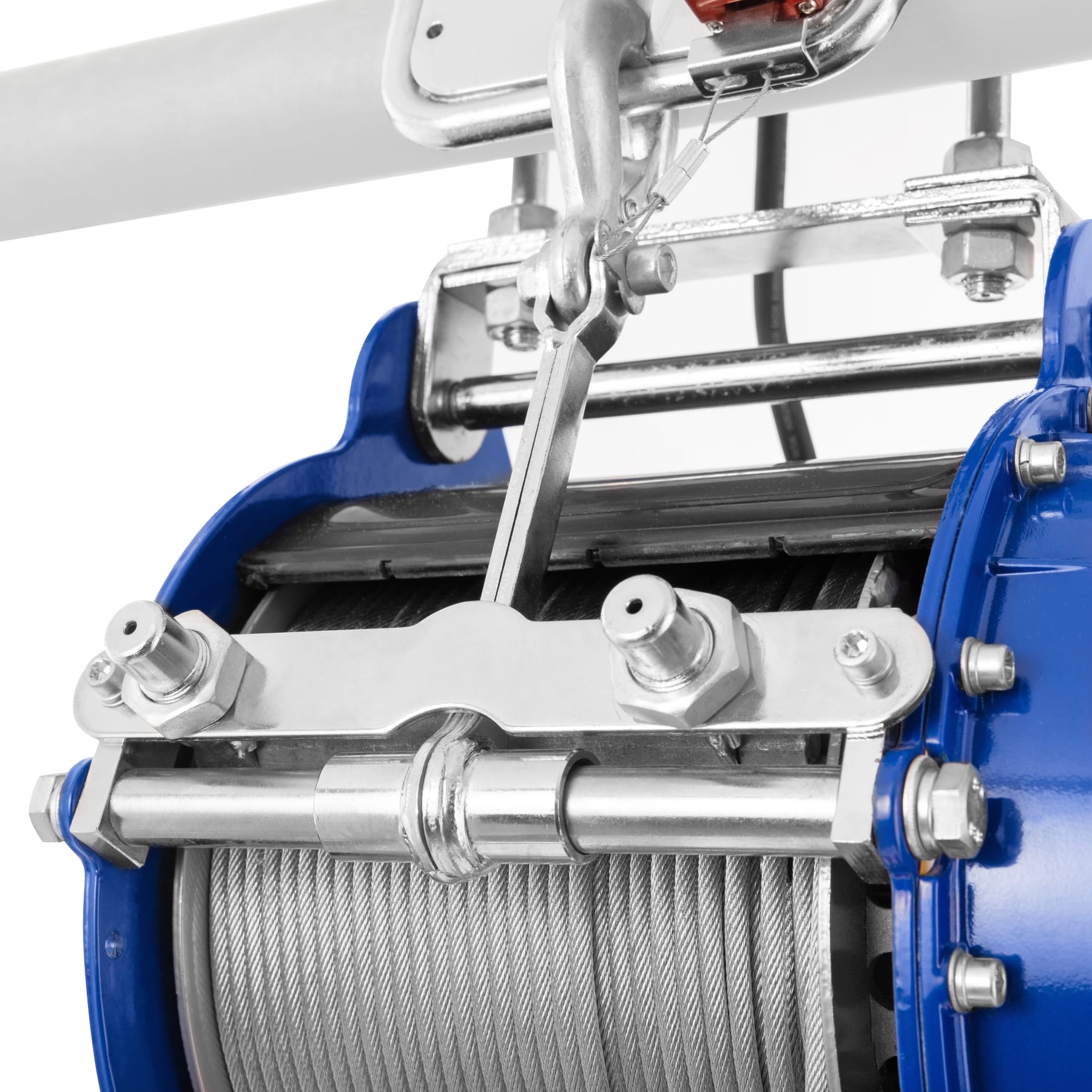

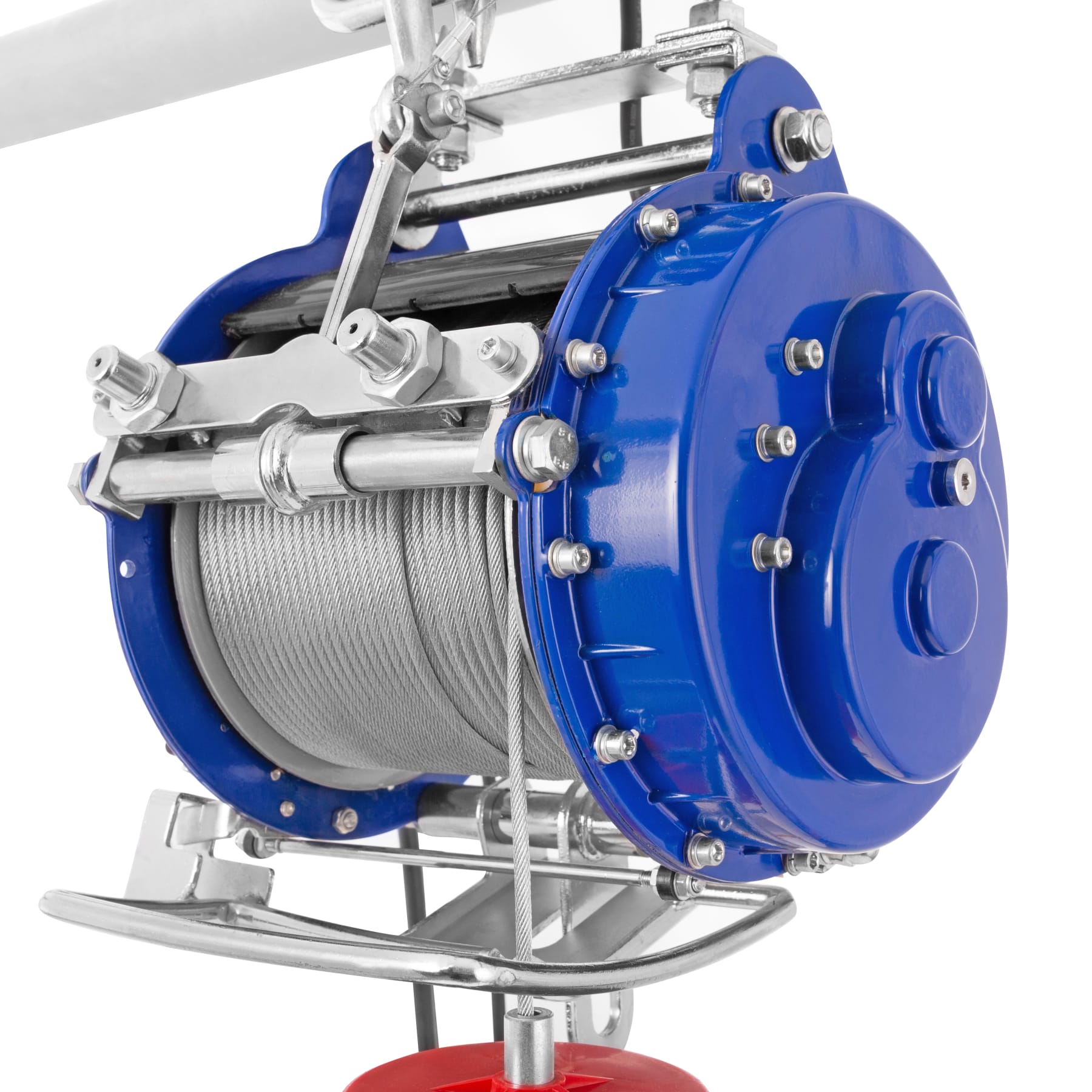

Easy installation: Hanging device for quick installation on round tubes without additional tools

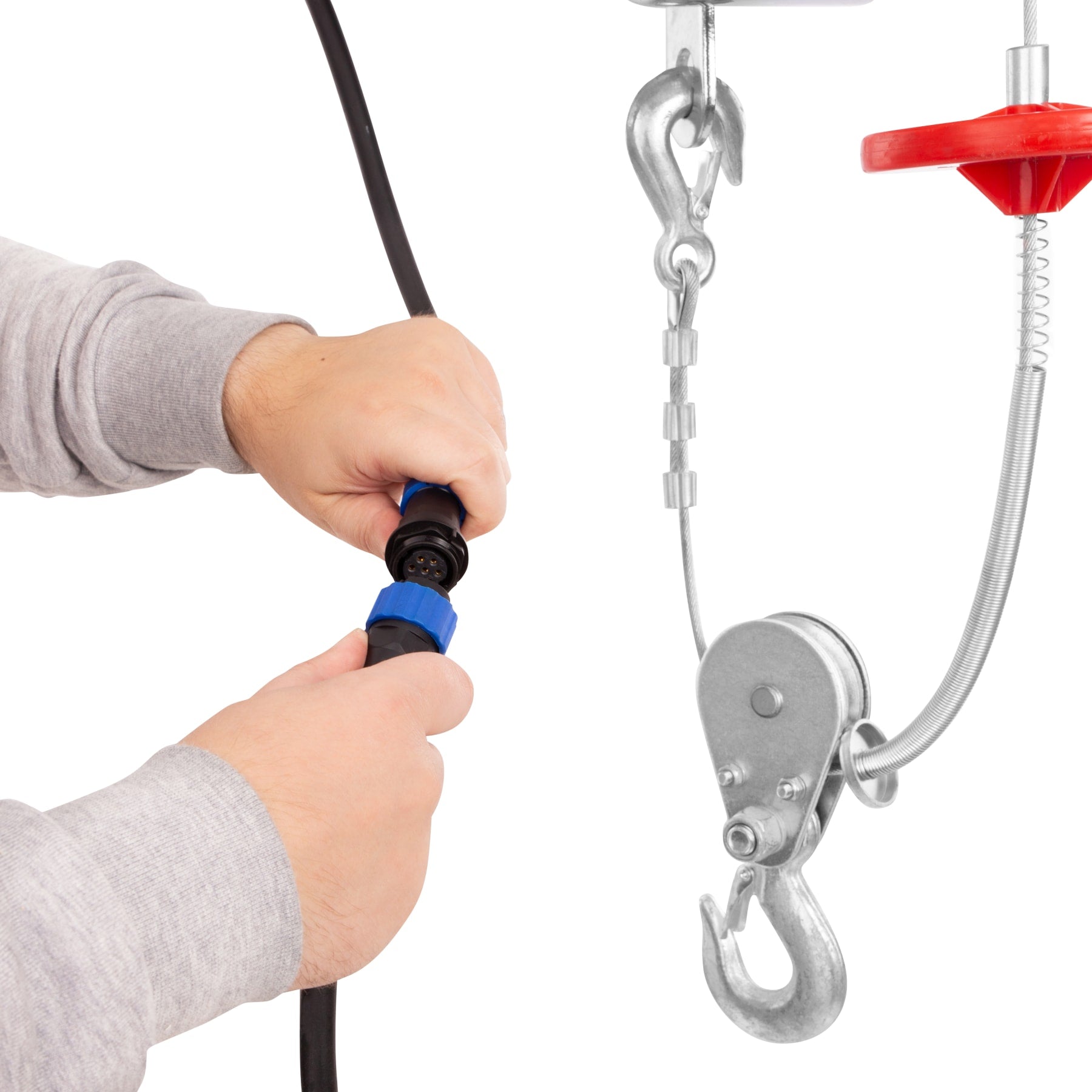

High load capacity: Lifts up to 200 kg or 400 kg (single hook) or 400 kg or 800 kg (double hook) daily
Long rope length: 30 m long rope for exceptional lifting heights

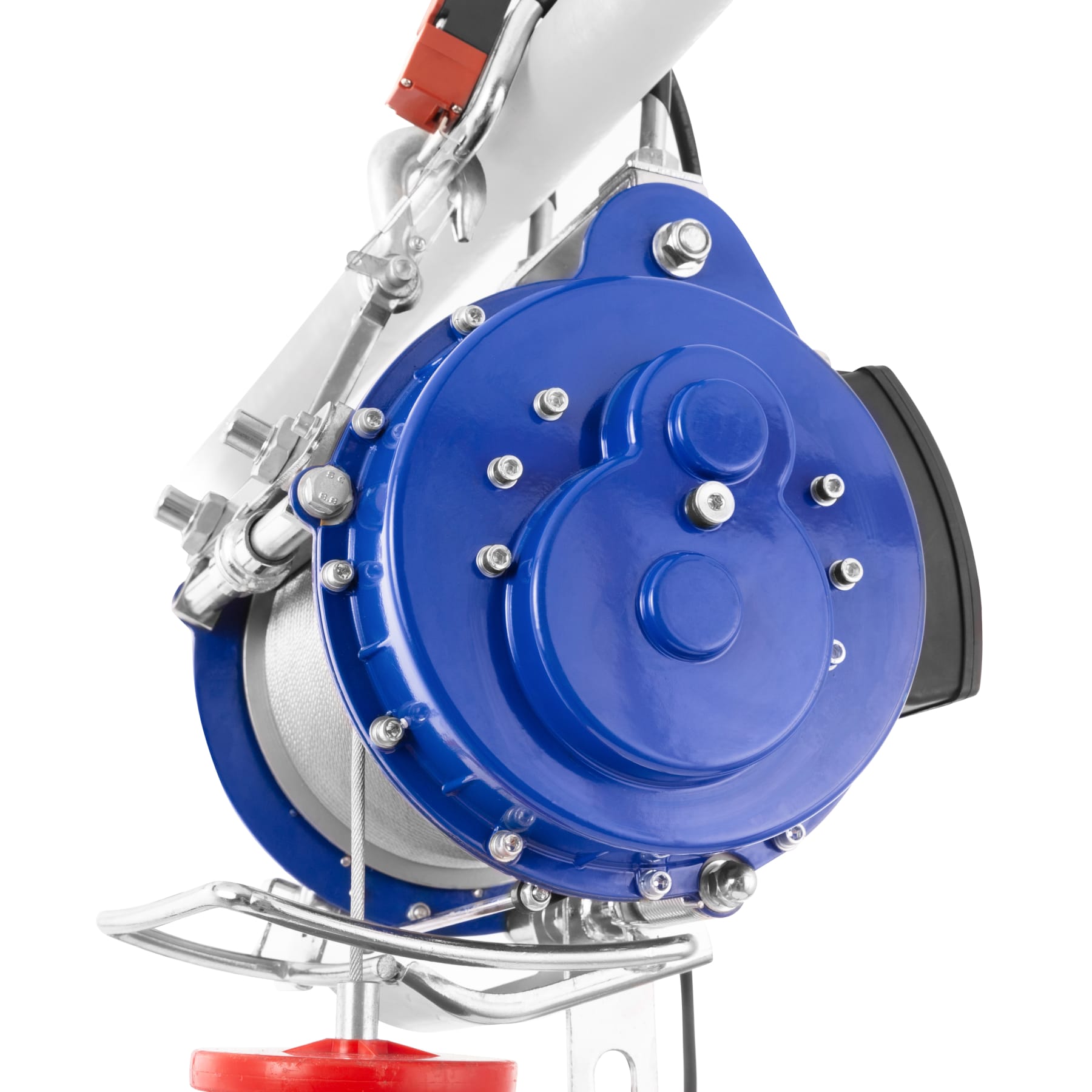

Powerful motor: 1000 W or 1300 W motor power, moves loads at 8 m/min (single hook)

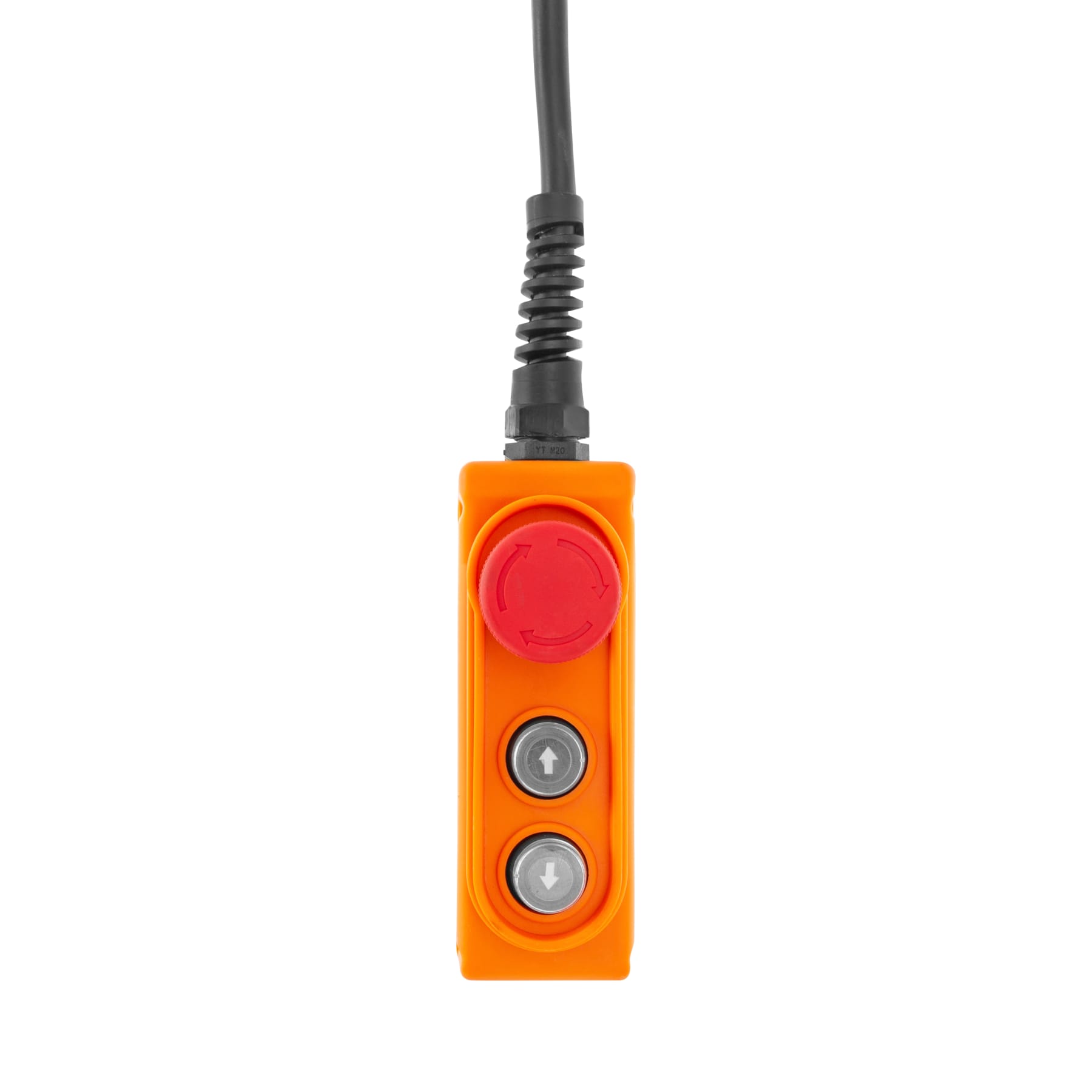

Intuitive remote control: Easy control of functions; optionally with radio remote control for additional flexibility

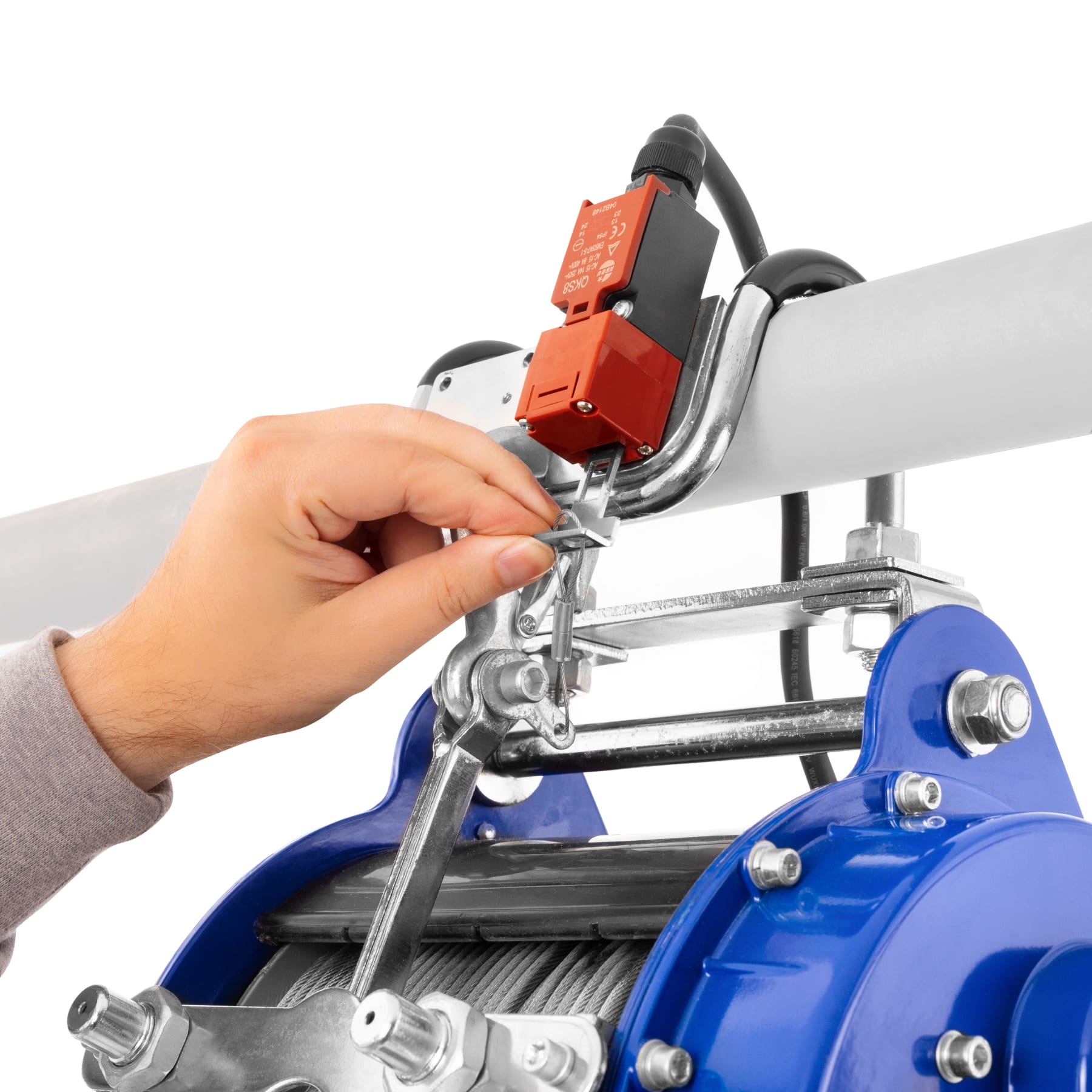

Safety functions: Commissioning only possible after correct installation, integrated emergency stop switch in the remote control
Light and mobile: With a weight of only 33 kg or 35 kg, ideal for mobile use
Durability: Designed for intensive and frequent use

Technical data

General

Capacity

400 kg

Capacity, double cable

400 kg

Capacity, single cable

200 kg

Weight

33 kg

Sound level EN-12053

71 dB

Material

Metal

Colour

Blue

Cable length

30 m

Wire cable diameter

4 mm

EN standard

EN14492-2

Seal

CE

IP protection type

IP54

Control cable length

1.5 m

Power cable length

0.65 m

Rated current

4.3 A

Thermal overload protection

yes

Cable strength

1870 mm

SKU

10010491-232

Brand

Pallit

Lift

Lift height

30000 mm

Lift motor power

1 kW

Lifting height, single cable

30 m

Lifting height, double cable

15 m

Lifting speed, single cable

8 m/min

Lifting speed, double cable

4 m/min

Battery

Voltage

230 V

Delivery

Parcel service

Delivered as

Metal

Links

Safety instructions

Product manual

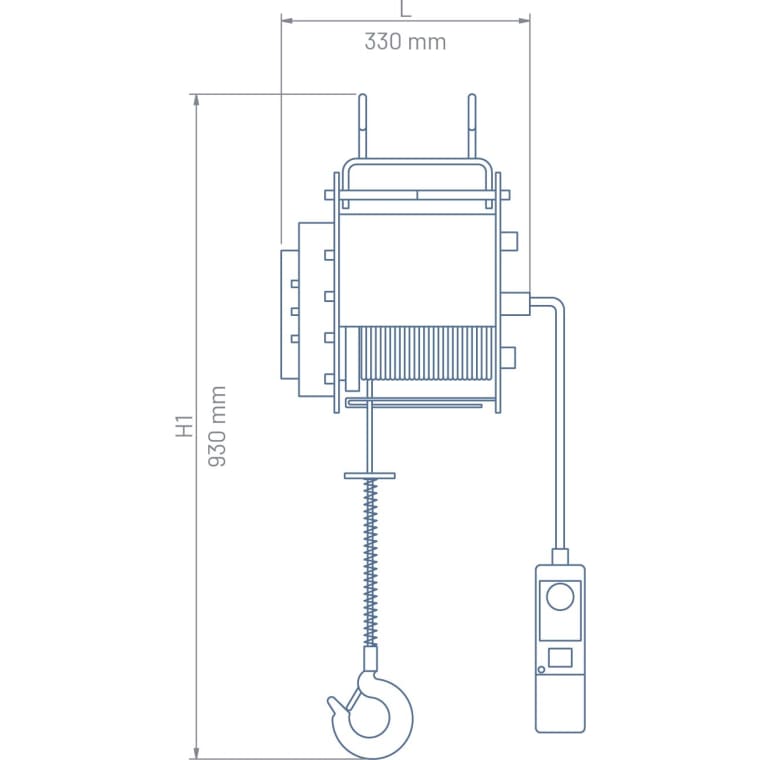

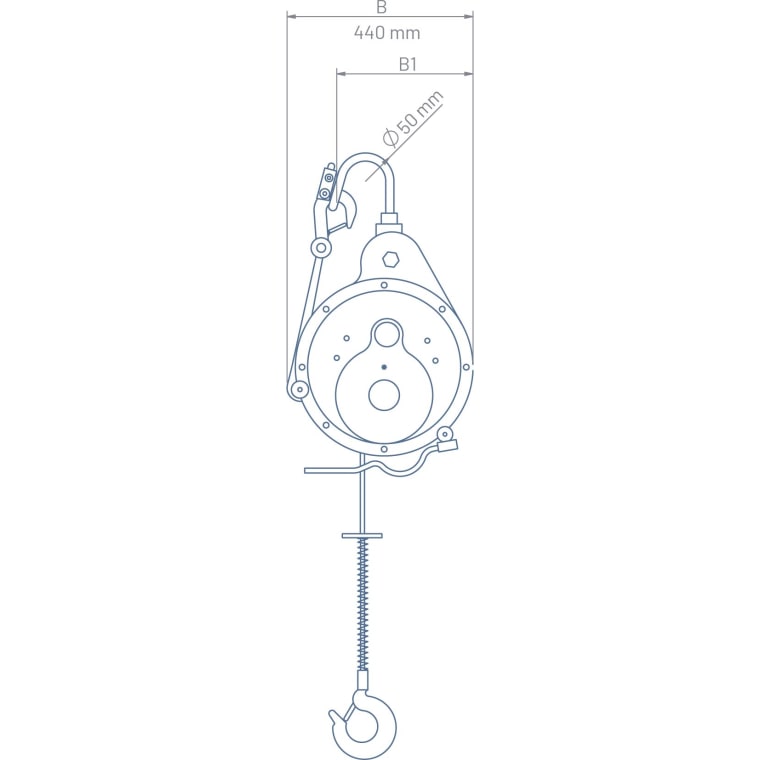

Dimensions

Lift height

30000 mm

h3
Height

440 mm

h14/h4
Length

330 mm

l1
Minimum distance to mounting

930 mm

H1/H

Width

260 mm

b1
