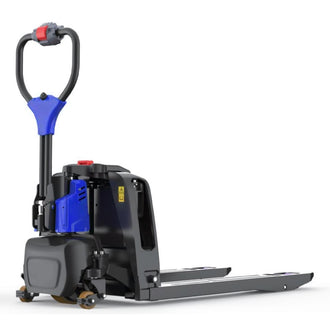

Affordable electric pallet truck with support rollers for curved routes.
1.139,00 €
excl. VAT
SKU 10010396-0
The EP electric pallet truck with support rollers and lithium-ion battery can be used in a variety of ways in the internal transport of goods and makes daily pallet handling easier: Move, lift and lower loads up to 1,500 kg fully electrically. The electric pallet truck is compact, light and manoeuvrable – perfect for transporting in the truck.
Features

Compact turning circle
With a turning radius of 1360 mm, it is easy to maneuver in narrow aisles and on truck beds.
Fast charging

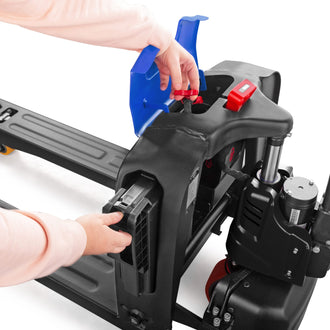

The lithium battery can be unplugged in just a few steps and charged using an external charger (included in delivery). The charging time is 3 hours and intermediate charging is also possible.

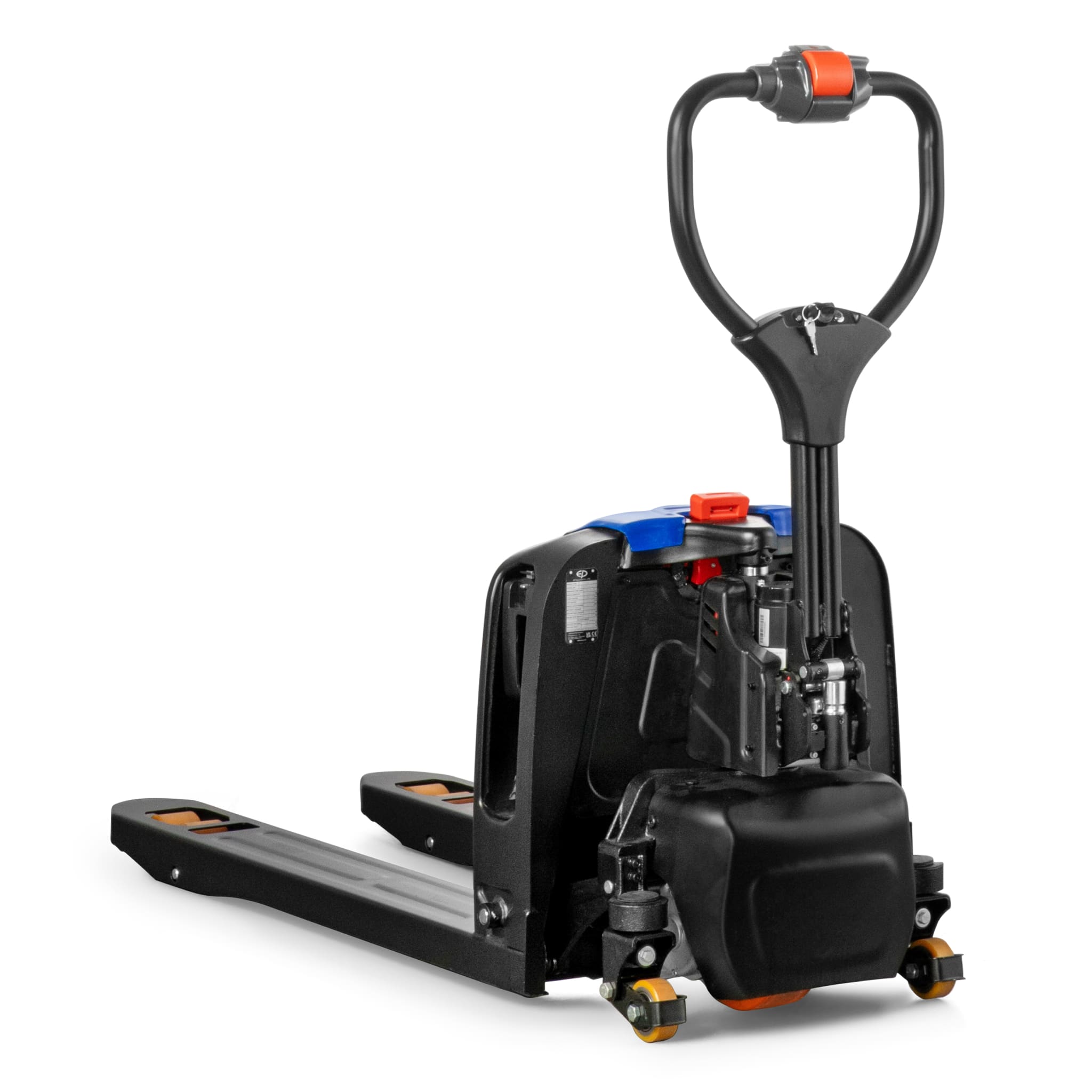

Safe through all curves
The support rollers increase the stability of the electric pallet truck and reduce the risk of tipping over when cornering.Technical data
General
Capacity
1500
kg
Weight
120
kg
Forklift licence needed
no
Seal
CE
Warranty
2 year warranty
SKU
10010396-0
Brand
EP Equipment
Wheels
Wheels material
Polyurethane (PU)
Steering wheel diameter
210
mm
Steering wheel width
70
mm
Fork roller type
tandem roles
Load roller wheel diameter
80
mm
Fork roller width
60
mm
Lift
Lift height
187
mm
Lift motor power
0.5
kW
Lift speed, unladen
0.02
m/s
Lift type
electric
Drive
Drive motor power
0.75
kW
Drive motor type
direct current (DC)
Travel speed, unladen
4.5
km/h
Creep speed button
Yes
Gradeability, unladen
10
%
Max. gradeability, laden
4
%
Drive
electric
Brake
electric brake
Battery
Battery type
Lithium-ion battery
Operating time
3.5
h
Battery charging time
3
h
Battery capacity
20
Ah
Voltage
24
V
Battery voltage
24
V
Battery quantity
1
Battery weight
5
kg
Battery dimensions
200x90x260
mm
Battery charger
external charger
Delivery
Delivery
carrier

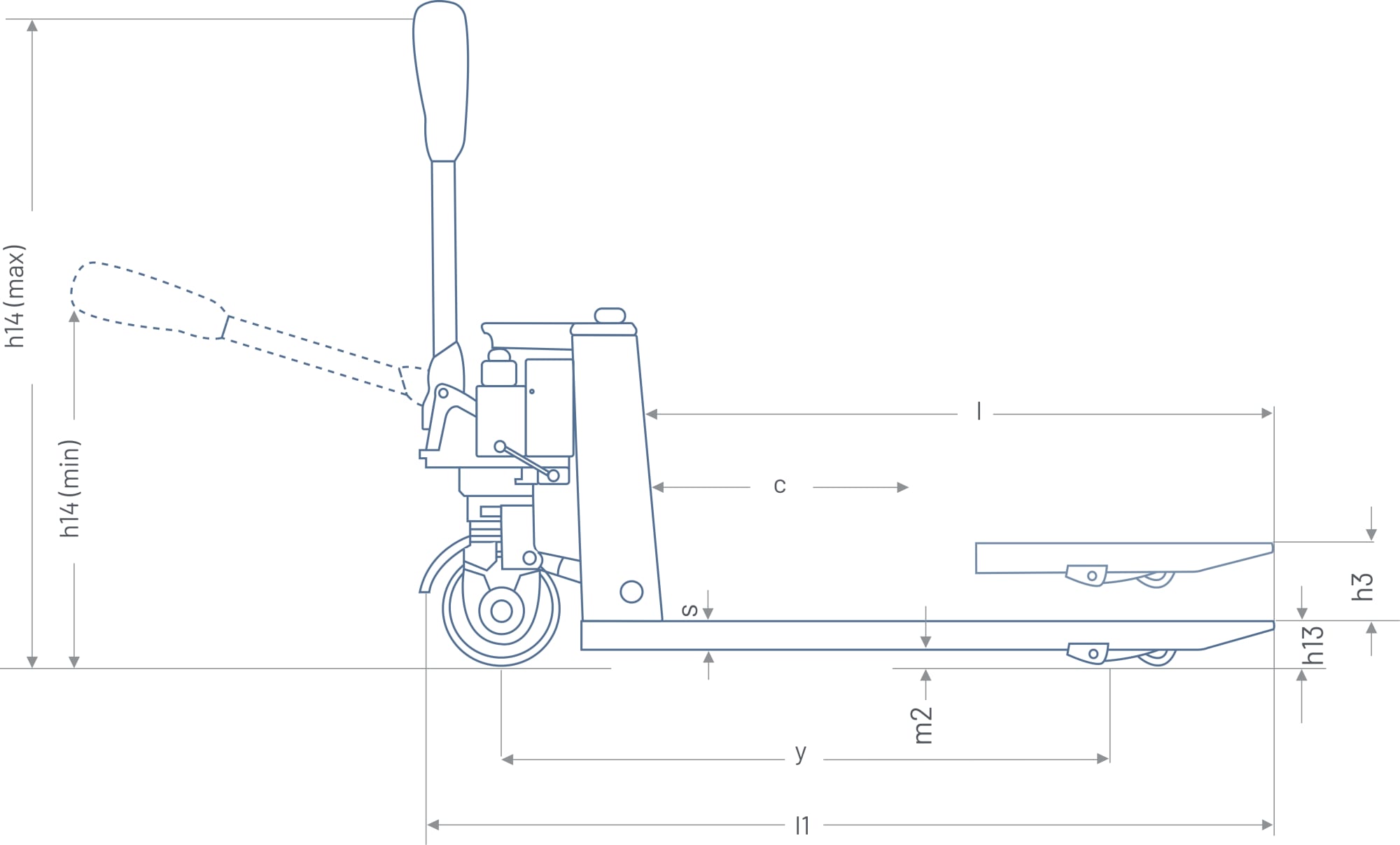

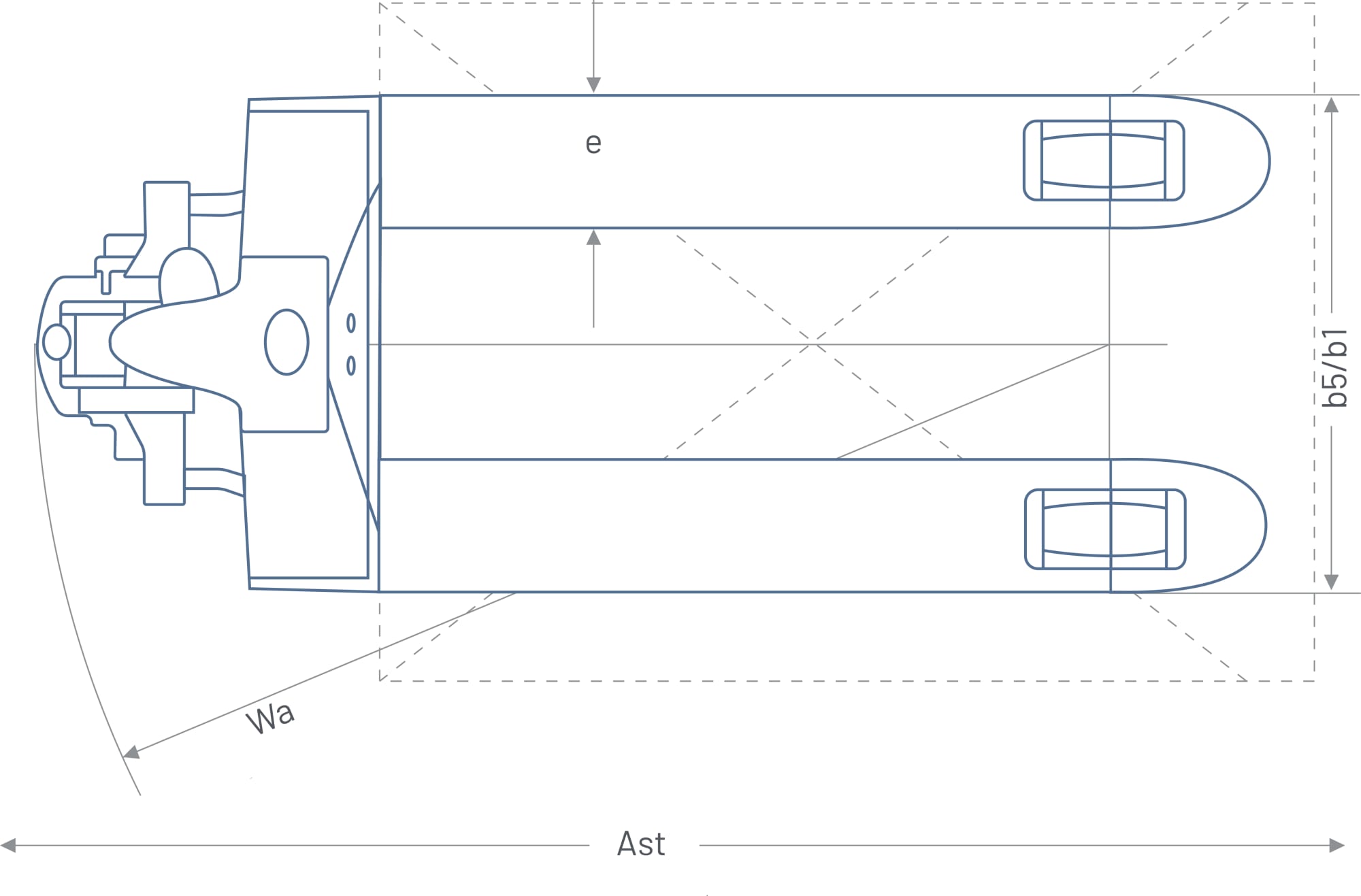

Dimensions
-
Fork length1150 mml
-
Lift height187 mmh3
-
Load centre600 mmc
-
Lift height, effective105 mmh12
-
Tiller height1190 mmh14
-
Length1550 mml1
-
Ground clearance25 mmm2
-
Ground clearance, center of wheelbase25 mmm2
-
Wheelbase1180 mmy

-
Width590 mmb1
-
Fork width, outer distance550 mmb5
-
Fork width, single fork150 mme
-
Aisle width for 1200x8002025 mmAst
-
Turning radius1360 mmWa
-
Distance between forks260 mm
