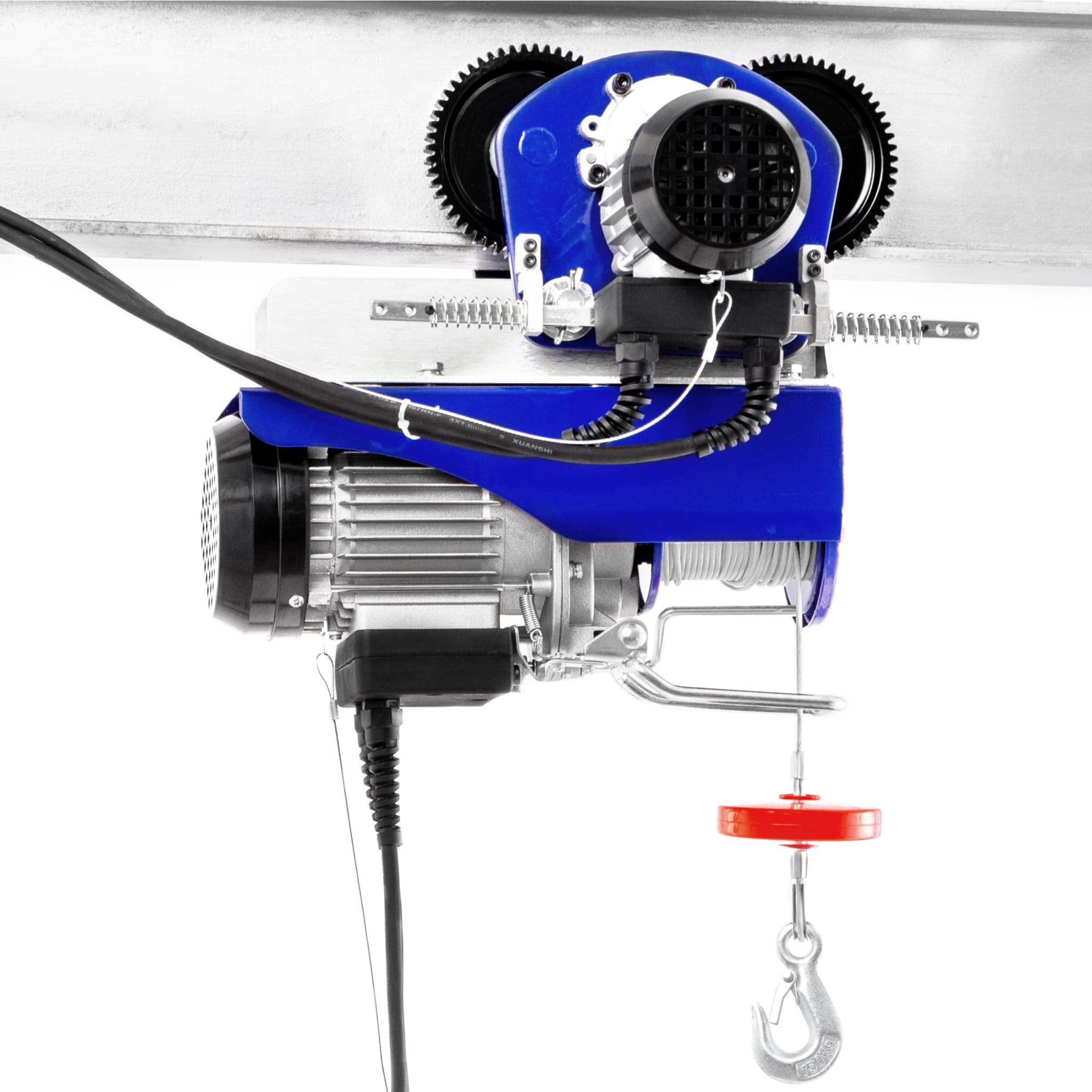

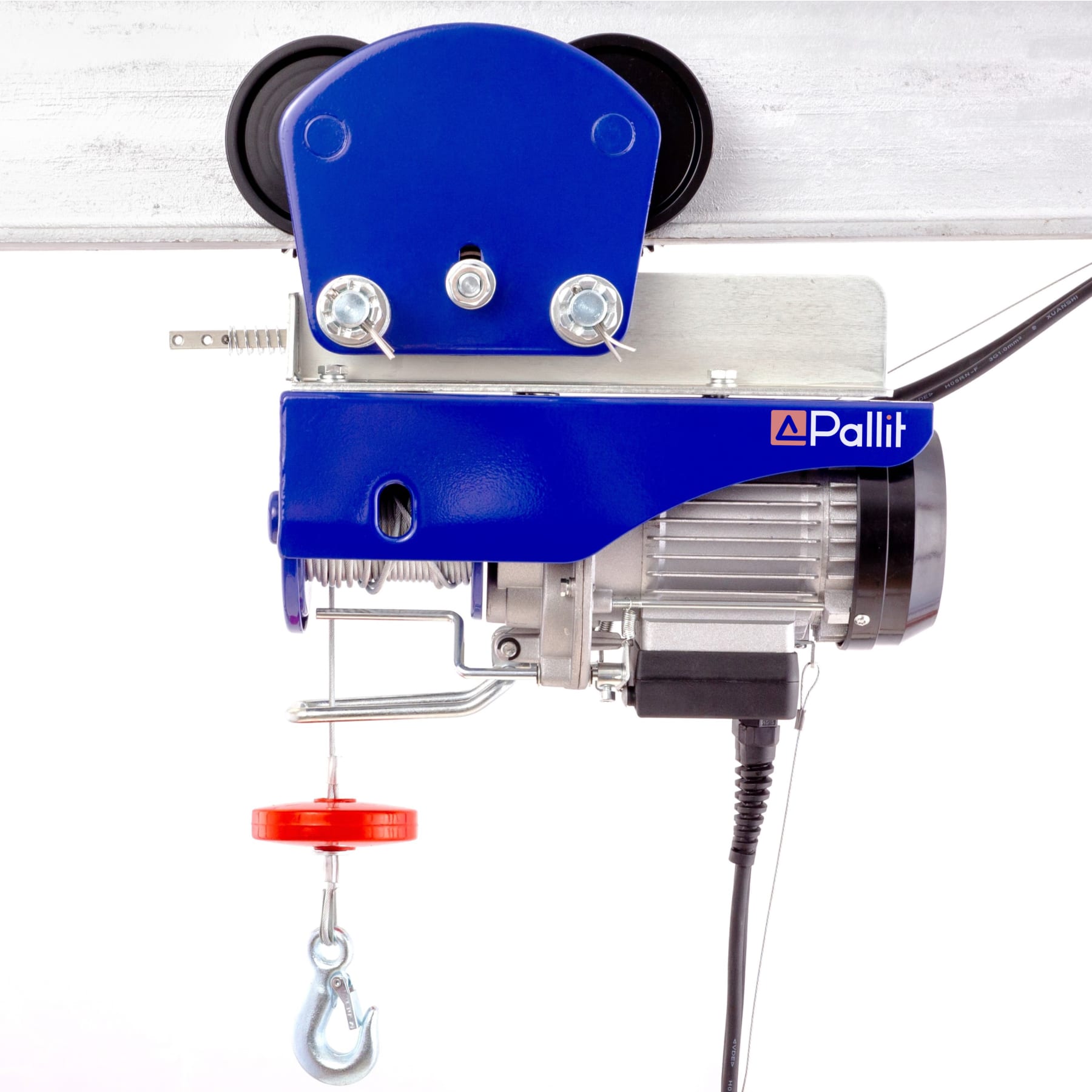

Bundle Electric cable hoist HOIST12 with beam trolley BEAM

Bundle Electric cable hoist HOIST12 with beam trolley BEAM

Vollelektrische Kombi für einfaches Heben und Bewegen von Lasten.
257,00 € excl. VAT

Free delivery: Wednesday, 19 March

📢 In use by 246+ companies across Europe

SKU 10010140-0

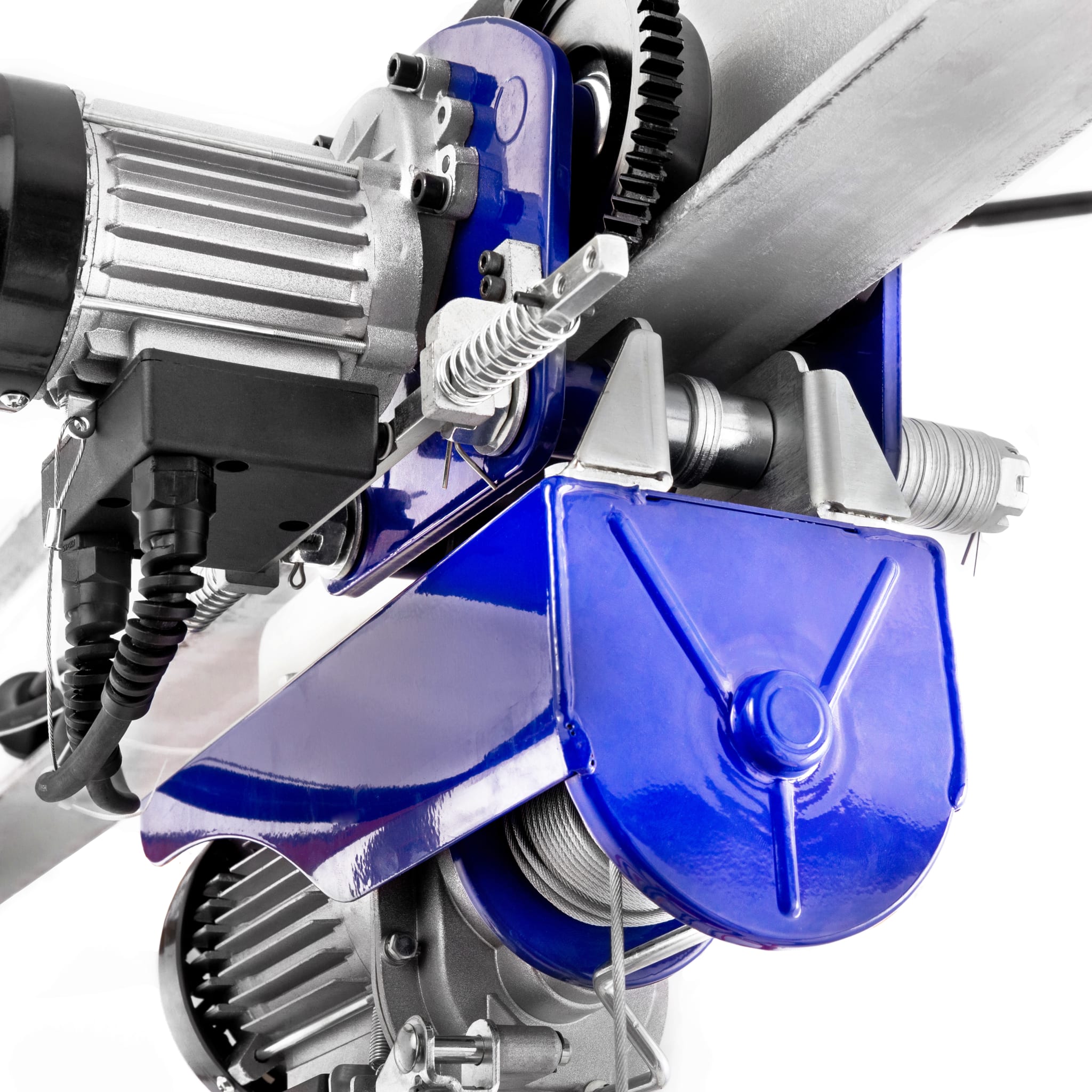

The set of our electric cable winch HOIST12 and the electric trolley BEAM offers a powerful solution for the horizontal and vertical movement of heavy loads such as barrels, motors and heavy individual components.

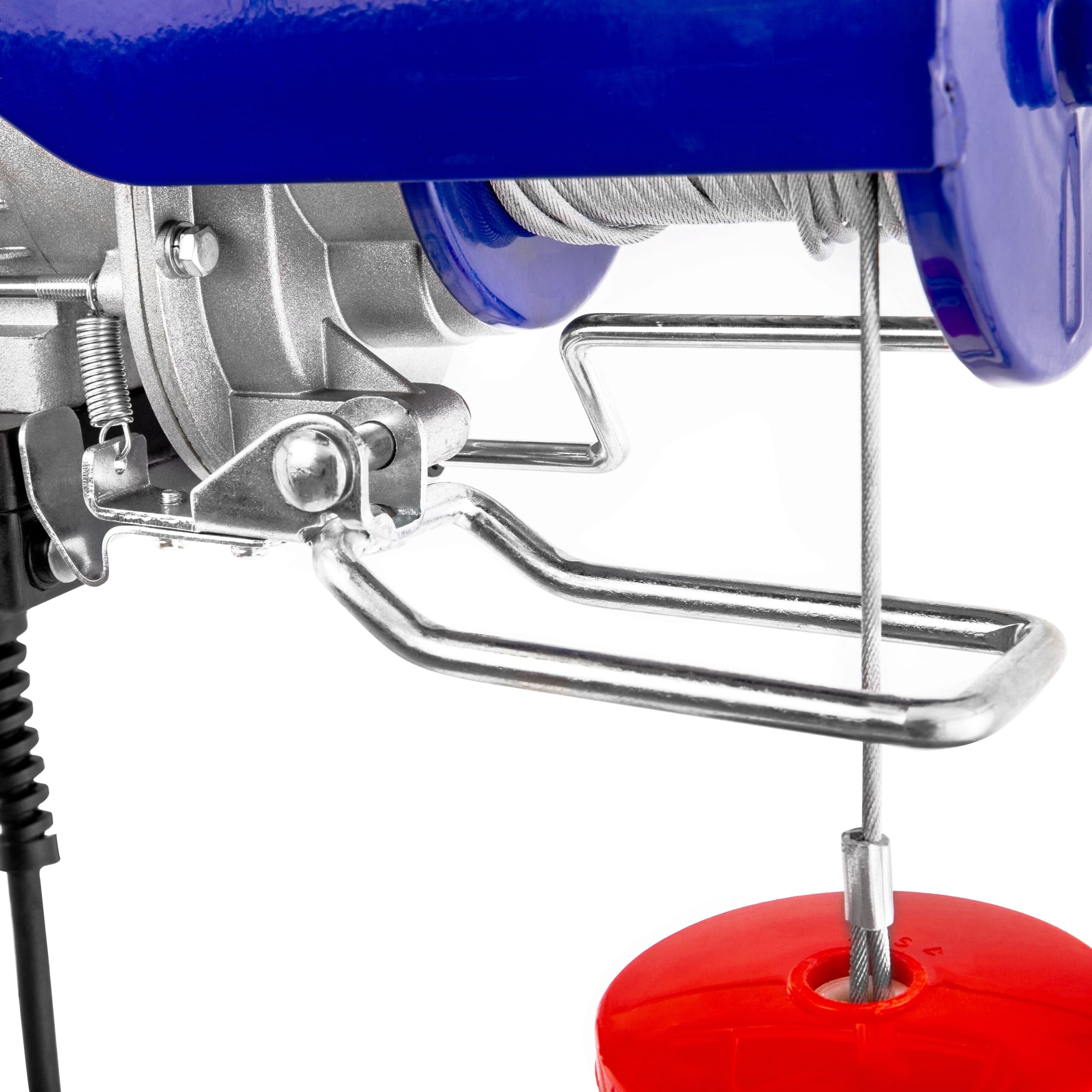

  • Fully electric wire rope hoist: Enables quick and easy lifting of loads with a capacity between 125 kg and 500 kg (single hook).

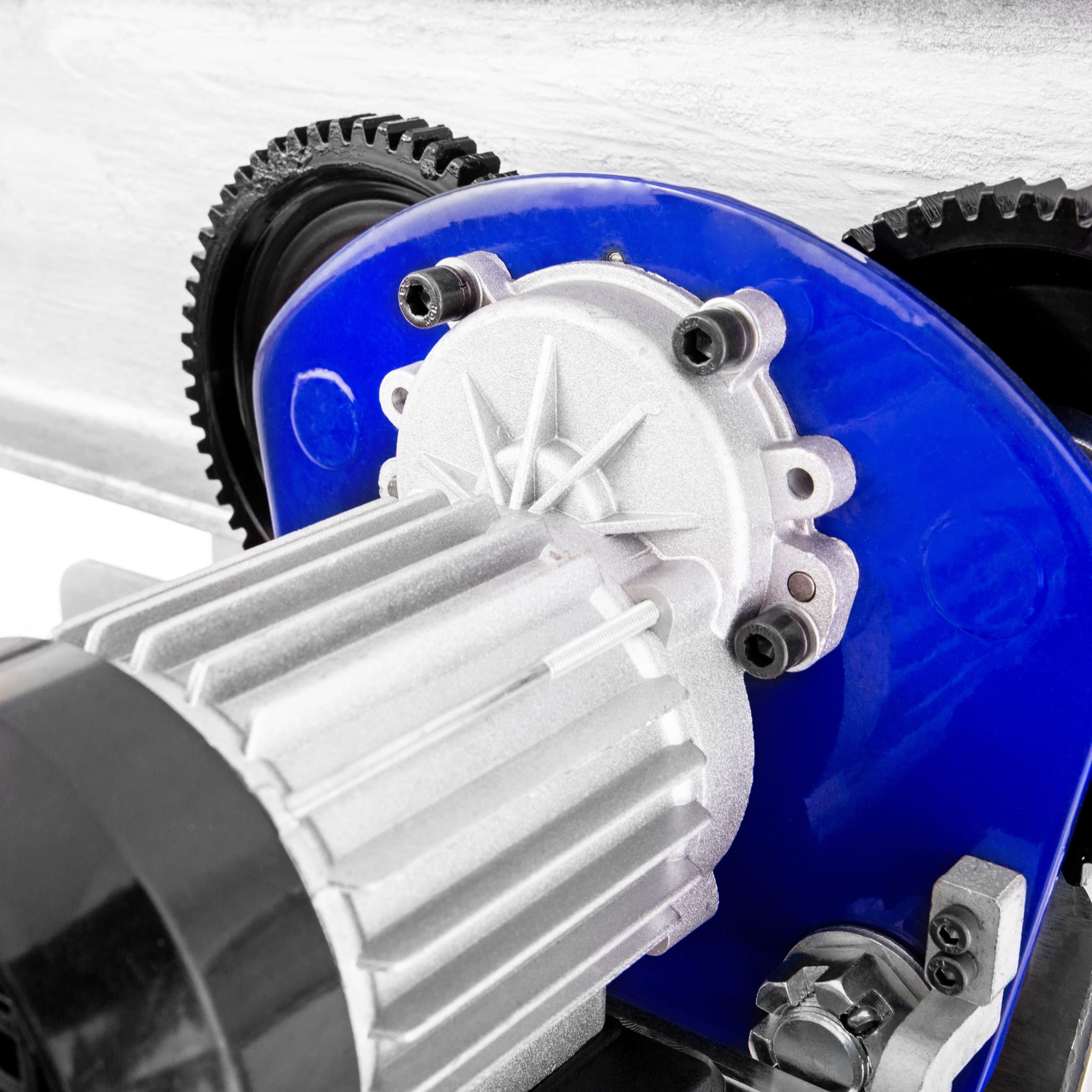

  • Powerful motor: Depending on the model, 500 W to 600 W motor power, including thermal overheating protection

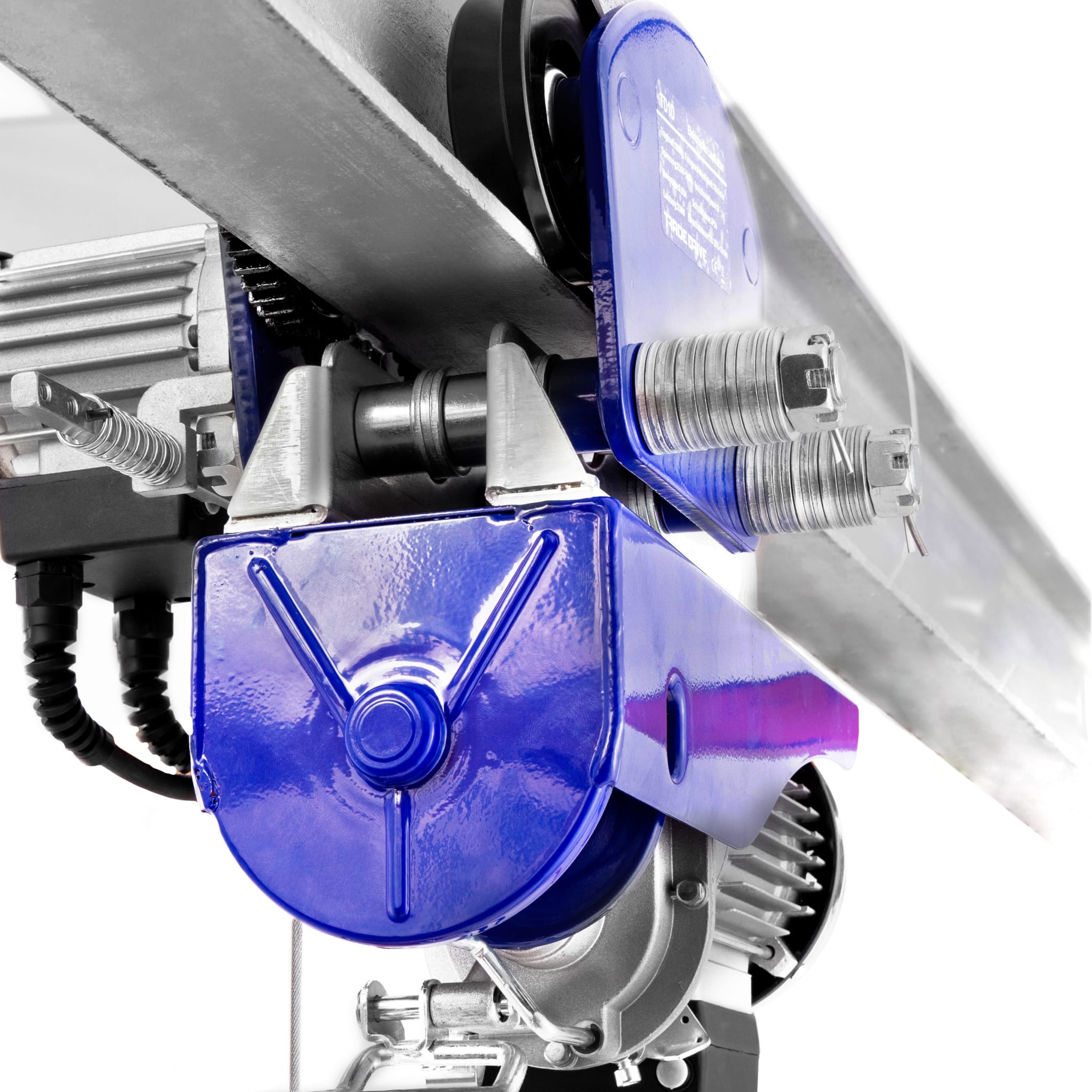

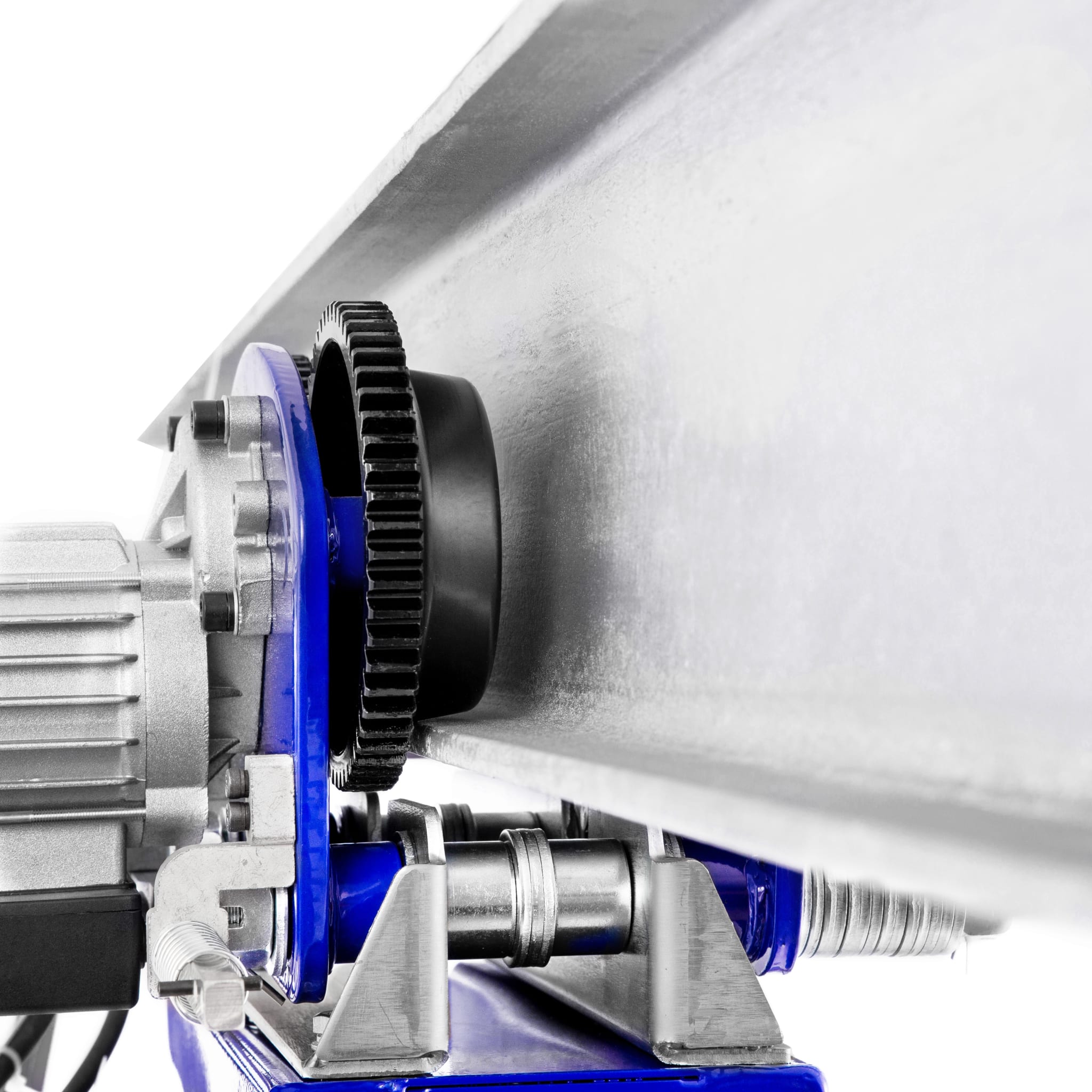

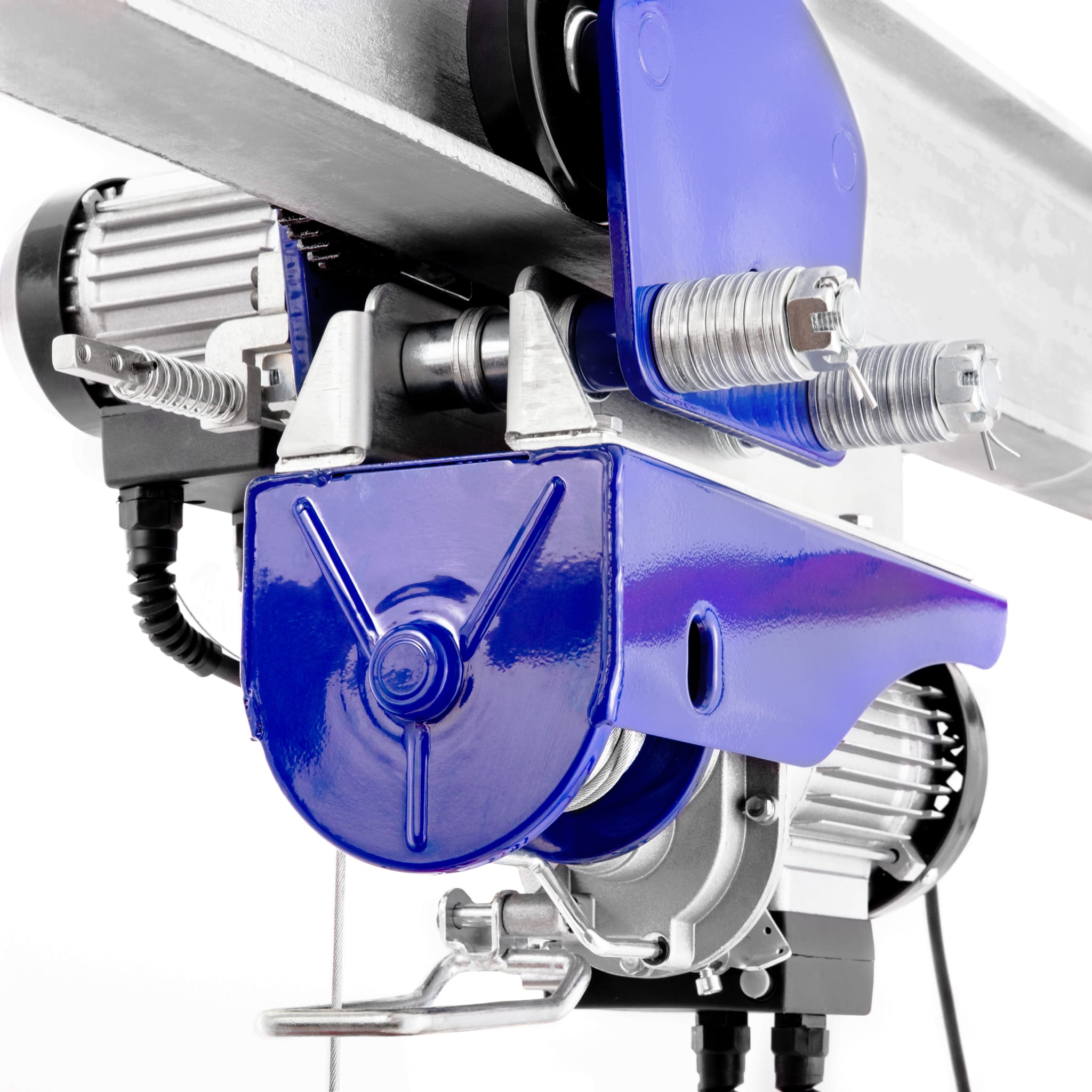

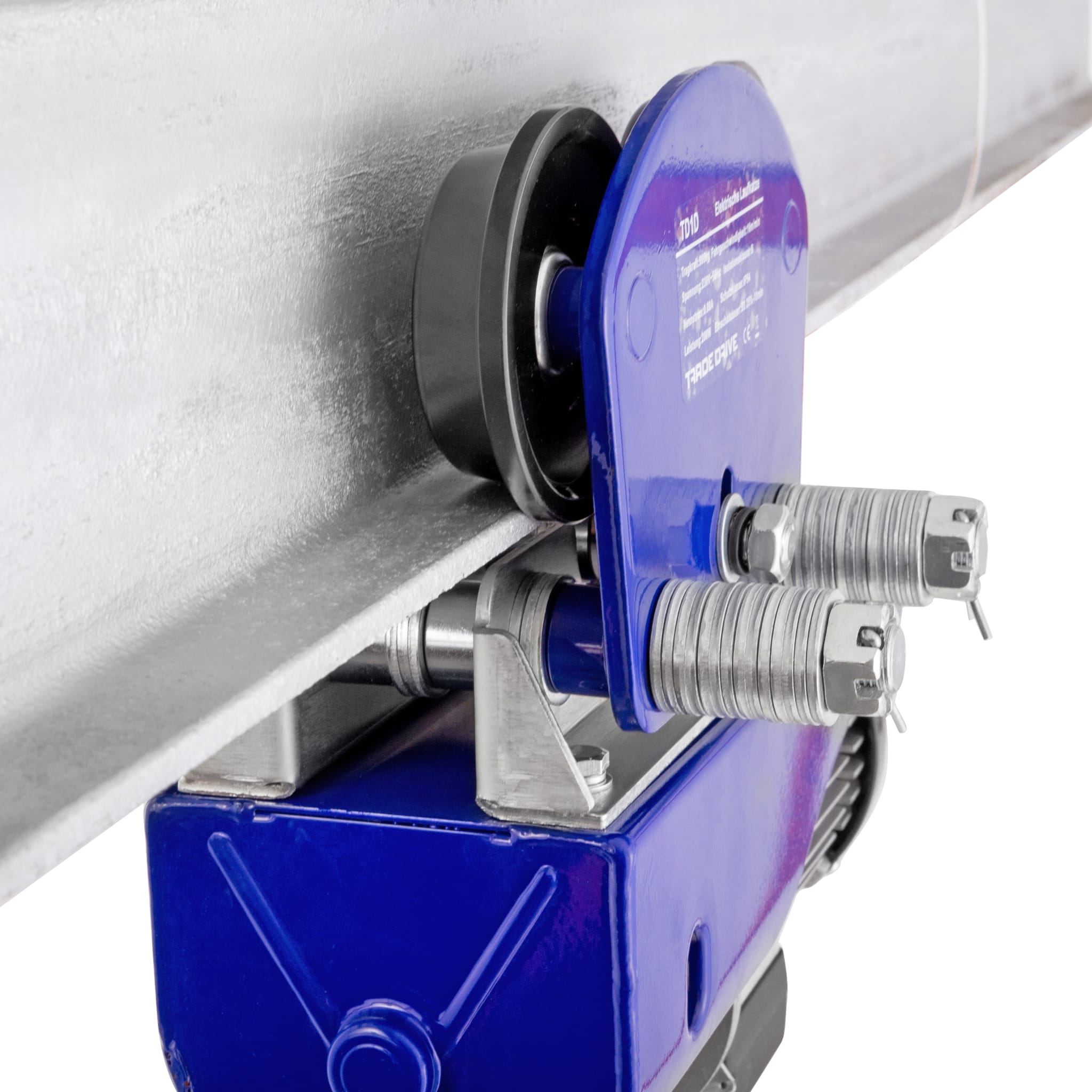

  • Electric trolley: For mounting on steel beams with a width of 78 - 110 mm
  • Travel speed: Trolley moves at a speed of 16.4 m/min (loaded)
  • Lifting speed: Maximum 8 m/min lifting speed of the electric cable winch when using a single hook
  • Operation: Separate wired controls for winch and trolley included
  • Carrier compatibility: Suitable for IPE 140-200 carriers

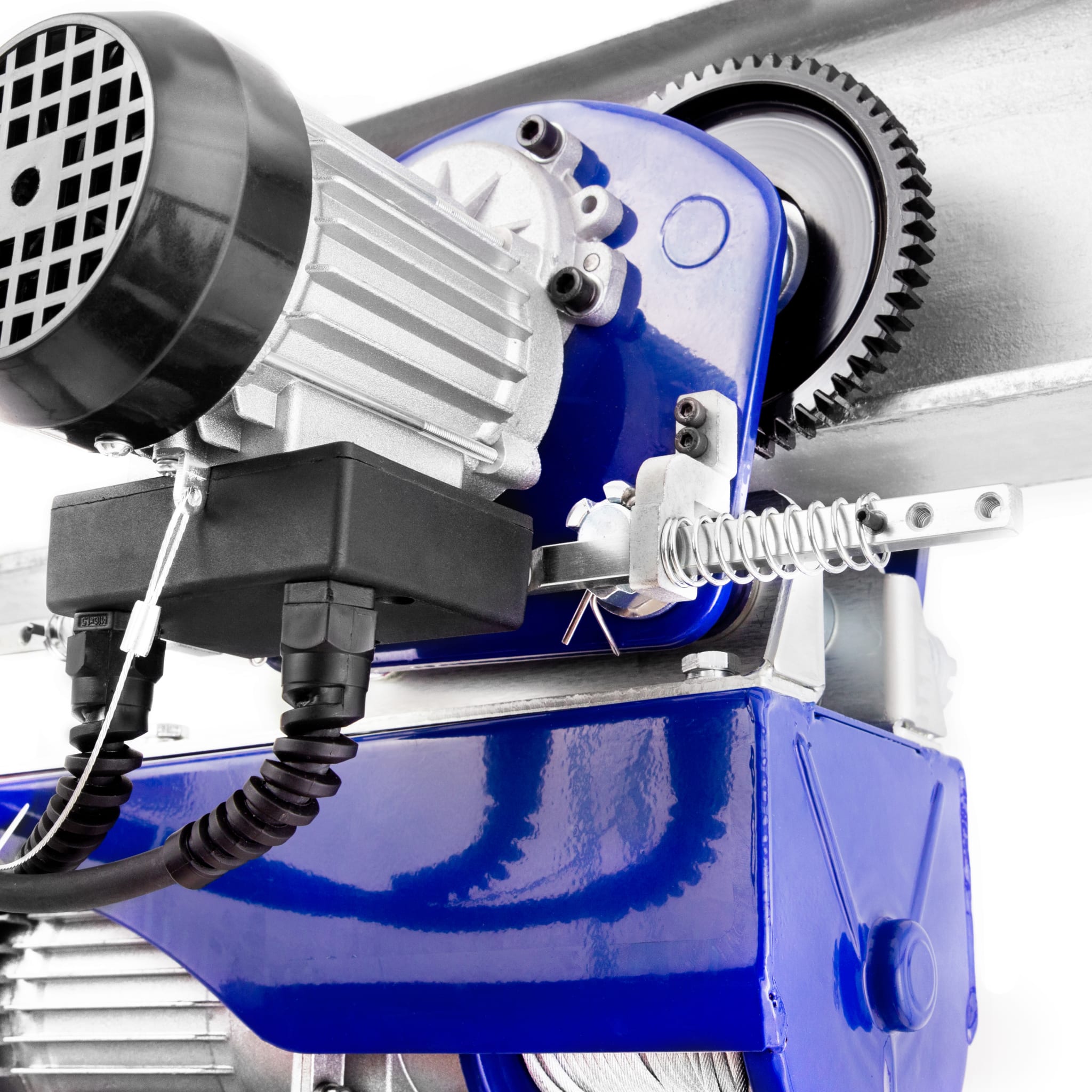

  • Additional motor power: The trolley is powered by a 120 W motor

Technical data

General
Capacity
150/300 kg
Capacity, double cable
300 kg
Capacity, single cable
150 kg
Weight
25.5 kg
Sound level EN-12053
85 dB
Material
Steel
Colour
Blue
Cable length
12 m
Wire cable diameter
3 mm
Power rating
S3-20%-10
ISO classification
M1
EN standard
EN14492-2
Seal
CE
IP protection type
IP54
Insulation class
B
Control cable length
1.6 m
Power cable length
0.45 m
Rated current
2.4 A
Thermal overload protection
Yes
Cable strength
1870 mm
Min. radius curve
1000 mm
Thread size
M10
SKU
10010140-0
Brand
Pallit
Lift
Lift motor power
0.55 kW
Lifting height, single cable
12 m
Lifting height, double cable
6 m
Lifting speed, single cable
8 m/min
Lifting speed, double cable
4 m/min
Drive
Drive motor power
120 kW
Battery
Voltage
230 V
Delivery
Delivery
Parcel service
Delivered as
2 parcels (partially assembled)
Links
Safety instructions
Product manual

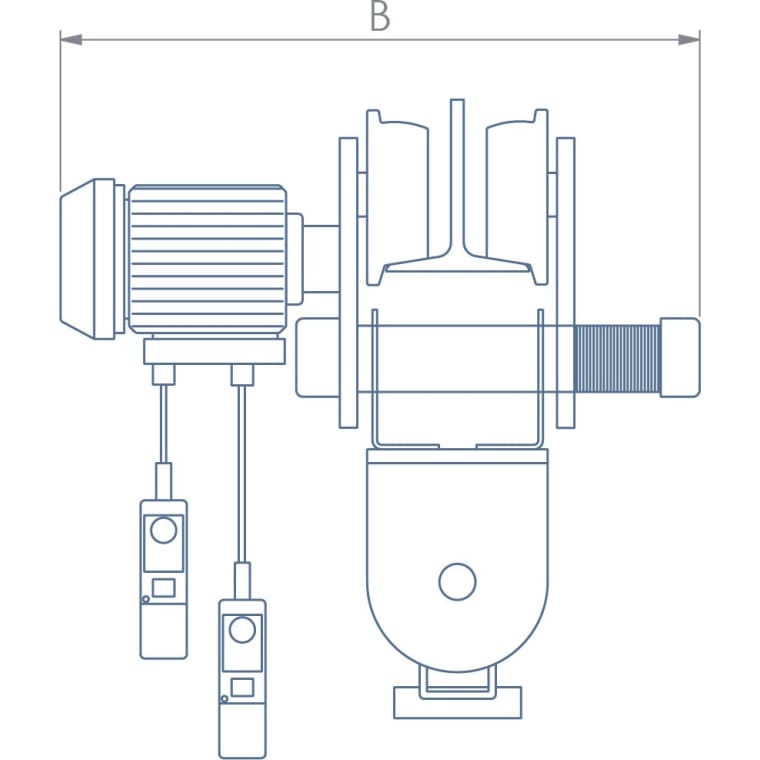

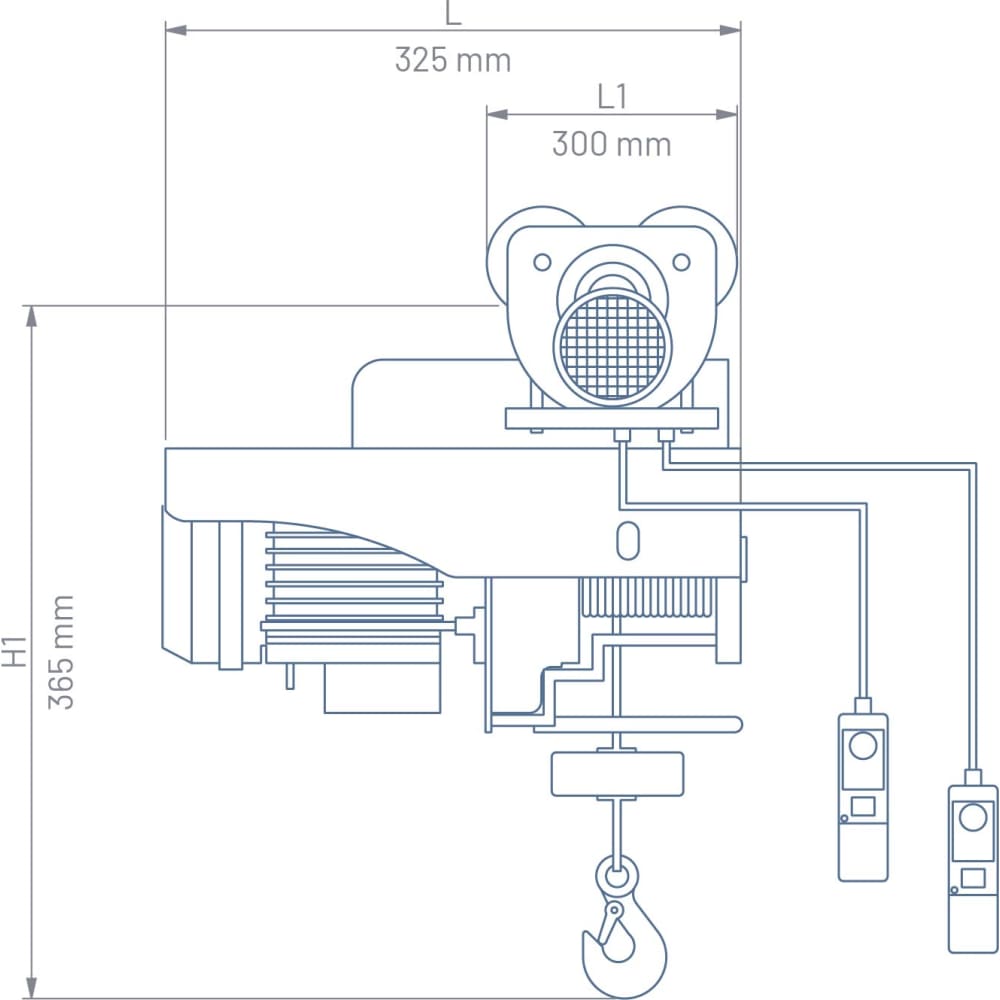

Dimensions

  • Cable strength
    Capacity
    Capacity, double cable
    Capacity, single cable
    Weight
    Lifting speed, single cable
    Power cable length
